Third time is a charm for Block DM-03

In 2015, the Block DM-03 upper stage, which traced its lineage to the Soviet Moon Rocket, the N1, made a successful debut after two failed attempts in 2010 and 2013. The validation of the heavily modified classic design opened the door to adapting the upgraded space tug for the new-generation Angara-5 rocket.


DM03

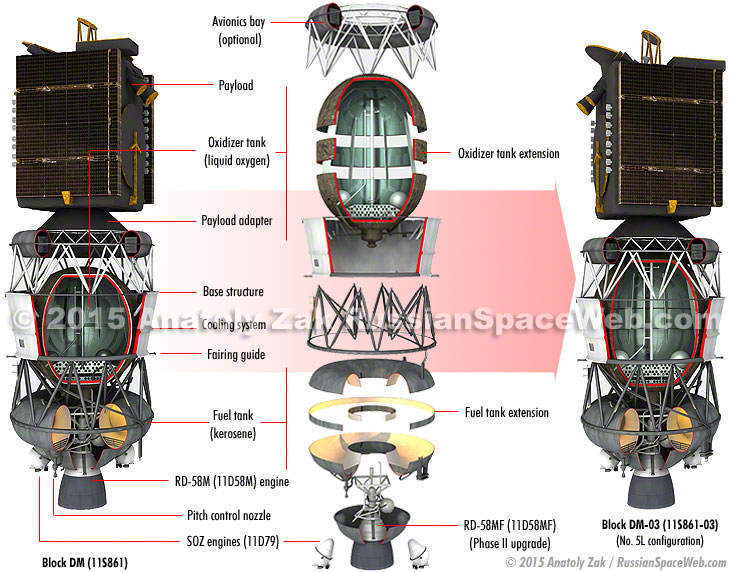

Block DM-03 was created by adding extensions into propellant tanks of the previous version of the stage. Eventually, the stage would be also equipped with a new-generation engine RD-58MF.

From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

Coming from the Cold War

At the end of the Soviet period, the Block D series served as the main space tug in the Russian rocket fleet. Since it was capable of multiple engine firings, the 16-ton vehicle was used for boosting satellites from initial parking orbits to further destinations in space. The stage was first developed for the N1 Moon rocket, but was later adapted as the fourth stage of the Proton launcher.

When the newly created Russian space agency began formulating the first post-Soviet space program, NPO Energia (now RKK Energia), the Block D developer, proposed several upgrades to the veteran stage. At the time, the main goal of the program was to reduce the environmental problems with toxic propellants and to transfer all contractor work from former Soviet republics into Russia. Within the plan, the company proposed multiple space tugs for key space vehicles, which were either operational or in development at the time:

Stage name
Launcher

Engine

Propellant

Notes
204GK/N14B
11D58M
O2/Kerosene
Two-stage tug
315GK
11D58M
O2/Kerosene
-
N12RA
11D58M
O2/Kerosene
-
N14B
-
O2/Kerosene
Based on Block D
Proryv
11D58M /RD-161
O2/Kerosene
Modified Block L
Yastreb
R-097/RD-0126
02/H2
-

Most of these designs derived from the Block D series and relied on a new-generation 11D58MF engine (INSIDER CONTENT), which would replace the existing 11D58M engine on the Block D series. (52)

The new impetus to upgrade Block D came after the end of production of the highly efficient synthetic kerosene, or sintin, which had propelled a number of Soviet launch vehicles including the Soyuz-U2 rocket and Block D series during the 1980s. RKK Energia intended to compensate for the resulting loss in performance of the operational Block-DM variant with a new upgrade designated 11S861-03 or commonly referred to as Block DM-03.

At the beginning of 1996, RKK Energia issued an initial engineering proposal for the DM-03 variant. Along with several other design efforts across the industry, the program aimed to boost the payload of the Proton rocket to meet the requirement of the Russian government for the delivery of 2,300 kilograms to the geostationary orbit, matching the nation's prospective military and civilian communications satellites. At the time, RKK Energia aimed to complete the preliminary design of the stage by January 1997. The main design change in Block DM was the addition of cylindrical inserts into the propellant tanks, which would increase their propellant load by around 4 tons, bringing the total capacity to 18.7 tons. Without changing the overall dimensions of the stage, this upgrade alone would enable to boost the Proton's payload by around 460 kilograms.

However in the second phase of upgrades, engineers also proposed installing the new 11D58MF engine and the new flight control system designated SUMD-58M. In conjunction with the new engine, DM-03 could also be equipped with an auxiliary propulsion initiation system burning the same non-toxic propellant as the main engine. As a result, a pair of ever present autonomous ignition systems DU SOZ (11D79), also known as ullage motors, burning toxic hydrazine and nitrogen tetroxide could be finally dropped. Most other components of the stage were to remain the same to minimize the development and testing.

Block DM-03 (11S86-03) specifications:

Launch vehicle
Payload mass to a geostationary orbit when launched on Proton-K variant
2,750 kilograms
Payload mass to a geostationary orbit when launched on Proton-M variant
3,200 kilograms
Onboard propellant mass
18,700 kilograms
Main engine

Going ahead

A preliminary design for the DM-03 stage was delivered to the agency in March 1997 and it was also submitted for evaluation to the agency's certification center TsNIIMash and to the Russian Ministry of Defense's main think tank, 50th TsNIIKS. Both civilian and military experts reportedly endorsed the new design. As a result, in 1998, RKK Energia began issuing design documentation for the upgraded stage. Most of the design work on Block DM-03 was delegated to the Volzhskoe Branch of RKK Energia in Samara.

During the first half of 1998, the Krasmash factory in Krasnoyarsk, which mass-produced the Block DM series, issued manufacturing documentation for the DM-03 variant and built tooling hardware for the new tanks. Other components for the stage started taking shape at RKK Energia's own ZEM plant in Korolev. In parallel, a formal technical assignment for the DM-03 variant was also being formulated between RKK Energia, the Russian space agency, RKA, and the Strategic Rocket Forces, RVSN, which at the time, were given the responsibility to oversee Russia's military space program.

Political battles

On the political side, already in 1997, GKNPTs Khrunichev refused to cooperate on the integration of the new stage into the Proton, at least according to RKK Energia. Instead, Khrunichev was working on its own Briz-M stage, burning toxic hydrazine and thus without future, RKK Energia believed. From its side, GKNPTs Khrunichev argued that RKK Energia would not be able to complete the development of its stage under current financial conditions. Ironically, RKK Energia argued that much of its financial troubles stemmed from unpaid bills sent to Khrunichev for its services in the lucrative commercial launch business!

It was another example of industrial rivalry going back to the dawn of the Space Era, which again threatened to result in a wasteful duplication of efforts, but now under even more severe financial circumstances. According to RKK Energia, in 1997, the Russian space agency allocated the equivalent of $3.5 millions for the development of Block DM-03. When RKK Energia and GKNPTs squared off on the issue at a board of directors meeting of LKEI, the international joint venture which marketed Proton to commercial customers, Khrunichev promised to hold off the use of Briz-M until at least 2000, which was probably the earliest year the new stage could be put into commercial service any way.

Still, on May 29, 1998, the cash-strapped Russian space agency informed RKK Energia about its decision to cut funding for Block DM-03 and all work on the project was stopped on June 1. In July, the Ministry of Defense officially included the competing Briz-M into the Defense Procurement Program and set the first launch of the Gran (Edge) military communications satellite using the new space tug for December of the same year. It prompted a written complaint by RKK Energia's president Yuri Semenov to the First Deputy of the Russian government Yuri Maslyukov on September 16, but to no avail. (Ironically, the launch with Gran satellite took place in the Summer of 1999 and ended in failure during the operation of Proton's second stage.)

On August 25, 1998, Semenov wrote to the head of RKA Yuri Koptev requesting funding for the minimum upgrades to the DM stage. By October, RKK and TsNIIMash formulated a minimal upgrade program and at the beginning of December, Koptev gave the go ahead to the plan on the condition that it would be funded jointly with a partial use of RKK Energia's profits from commercial activities. The work moved ahead slowly but had to be stopped again in May 1999, after the promised funds from the agency had failed to arrive.

Into the 21st century: Looking for a job

On Nov. 3, 2000, Koptev approved yet another attempt to continue work on the DM-03 variant and the project was included into the Federal Space Program from 2001 to 2005 with a price tag of 37.5 million rubles during 2002. RKK Energia was expected to cover 48 percent of the price tag with its own money, with the remaining 52 percent provided by the agency to the company's contractors.

At the time, the DM-03 variant was expected to be used for the launch of four Ekspress-AM communications satellites during a time period from May 2003 to March 2004. To fulfill that plan, the development of Block DM-03 would have to be completed no later than 2002. (164) However all Ekspress-AM satellites were ultimately built to fit into the operational Block DM variant.

On Feb. 15, 2001, Semenov ordered the resumption of work on the DM-03 stage. RKK Energia took a 150-million ruble commercial loan to fund the project. By April, engineers completed an addendum to the preliminary design of the stage with a comparative analysis of various previous upgrades, first of all those made for the Zenit-based DM-SL stage for the Sea Launch venture. It was now possible to borrow the flight control system from the DM-SL stage for the DM-03 design.

By October 2001, the preliminary design got an addendum with the latest proposals for increasing the performance of the stage and the company completed the working documentation. Also, during 2001, the Krasmash factory manufactured two prototypes of the DM-03 variant for static testing and one for finalizing the design, dynamic and vibration testing. In December 2001, a prototype for static testing arrived at the TsNIIMash research institute for testing. These trials were successfully completed in April 2002.

By September 2002, the plan was made to launch the Yamal-200 communications satellite on the first Block DM-03 stage (No. 1L) both built by RKK Energia, however this never materialized. Given the extra payload capability on DM-03, during 2003, RKK Energia also made an attempt to organize a tandem launch of the Ekspress-AM satellite along with a British Gemini commercial communications satellite. However, this plan also fell through.

Finally, in 2004, it was decided to employ the DM-03 stage for the launches of Uragan-M navigation satellites for the GLONASS constellation, which would ultimately become the first mission for the beleaguered project.

Phase IIa

By the end of 2004, RKK Energia further subdivided the Block DM upgrade plan, developing a preliminary design for the Phase IIa upgrade, which would increase payload for the Proton-M rocket to geostationary orbit up to 3,400 kilograms. Phase IIa would precede a more radical upgrade designated Phase II.

At the time, Phase IIa included adapting all the new features from the DM-SL stage on the Zenit rocket in the Sea Launch venture into the Proton's version of the stage, such as a lighter avionics truss with a more advanced flight control system and the use of structural components made of composite materials. In addition, a movable nozzle extension on the main engine would be introduced.

Several other upgrades were apparently considered as optional.

11S86-03 Phase IIa specifications:

Payload to geostationary orbit when using 813 INM or 17S72 fairings and non-synthetic kerosene
2,900 kilograms
Additional payload increase with all optional upgrades, including...
+542 kilograms
  • Switch to synthetic kerosene (sintin)
+210 kilograms
  • An earlier ignition of the main engine during the first maneuver
+70 kilograms
  • Jettisoning of the SOZ ullage motors before final firing of the main engine
+50 kilograms
  • Removing a backup Kvant-VD telemetry system
+12 kilograms
  • Entering a quasi-stationary orbit with an eccentricity of 0,04
+12 kilograms

Payload penalty in case of a switch to 14S57.11 payload fairing (borrowed from Briz-M stage)

-70 kilograms

Payload to a 19,140-kilometer circular (GLONASS) orbit during the launch of DM-03 No. 1L stage:

-
  • from a parking orbit with an inclination 64.8 degrees toward the Equator
4,800 kilograms
  • from a parking orbit with an inclination 51.6 degrees toward the Equator
5,200 kilograms

Phase II Impuls

In July 2008, RKK Energia issued a proposal for the Phase II upgrade, also known as Impuls (Impulse). It was funded under the Dvina project of the Russian space program. During this upgrade, the stage would finally receive the new 11D58MF engine and the old ullage motors burning toxic propellants would be replaced with a propulsion system using propellants from the main tank.

Block DM-03 (11S86-03 Phase II) Impuls specifications:

Launch vehicle
Dry (unfueled) mass, including...
2,900 kilograms
  • middle adapter
735 kilograms
  • lower adapter
290 kilograms
Onboard propellant mass
18,900 kilograms
Main engine
11D58M

The preliminary design for the Phase II variant was finalized in November 2010 and its formal review took place on November 11. (566)

Persei: Another split in upgrades (INSIDER CONTENT)

angara

From around 2007, a new effort to conceptualize new-generation launch systems to be deployed at the future Vostochny launch site, prompted RKK Energia to evaluate how the DM-03 stage could fit into a number of prospective launchers including Rus-M, Angara-5, Energia-K and other proposed architectures. Future incarnations of Block DM-03 were also studied around 2013 and 2014 for use in superheavy booster designs, such as Energia-5KV.

Block DM-03's first test flight goes wrong

In 2003, the Krasmash factory produced the first flight-worthy body of the DM-03 stage, designated No. 1L, while RKK Energia's ZEM plant in Korolev built supporting structures. The vibration tests also took place in the first half of 2003.

The assembly of the first flight-worthy stage (No. 1L) started in 2004 and was mostly completed during the same year with the exception of the flight control system which could not be delivered on time. It would then remain in storage at the ZEM plant in Korolev for the next several years.

By 2004, the ground testing of the DM-03 stage was also completed and from March to September, RKK Energia worked on adapting the DM-03 stage for a trio of Uragan-M navigation satellites for the GLONASS constellation. However only in June 2007, did the Ministry of Defense and Roskosmos approve an addendum to the GLONASS launch program to use the DM-03 for the mission which would lift off in December 2010.

The first DM-03 stage finally lifted off on Proton on Dec. 5, 2010, with a trio of GLONASS satellites however during the operation of DM-03 No. 1L stage, the mission failed.

Industry sources told RussianSpaceWeb.com that DM-03 had approximately 25 percent larger propellant tanks than the previous version of the stage. With 2,000 kilograms of extra propellant, which was believed to be mistakenly loaded onboard, the tanks would be filled close to the same level as the old ones - the oxygen tank would be 90 percent full with a 25-percent reserve load. (On Dec. 8, unofficial sources said that liquid oxygen overload onboard Block DM-03 had been 1.6 tons). As it transpired by Dec. 10, 2010, Block DM-03 had new (propellant level) sensors, however the loading of propellant was conducted according to old instructions.

Official sources later said that an engineering error during the calculation of the fueling of the stage had led to the launch failure on Dec. 5, 2010.

On April 13, 2011, the head of Roskosmos, Anatoly Perminov, told the Federation Council that operational missions of Block DM-03 would be temporarily suspended, RIA Novosti reported. In the previous months, the Chief Prosecution Office, which investigated the failure, concluded that the upper stage had been sent into operational flight without enough testing, thus violating the established process for the development, manufacturing and operation of space systems.

Second launch

The manufacturing of the first components for the second flight worthy DM-03 stage, known as No. 2L, started in the fourth quarter of 2009.

By the end of 2011, plans were made to ship Block DM-03 No. 2L to Baikonur in February 2012. There, it was expected to undergo integrated testing including a fueling trial to avoid a repetition of the first failure. The launch was preliminary scheduled for the middle of 2012, with a another trio of GLONASS satellites.

At the time, three DM-03 stages were completed and a fourth was in production. The fifth and final DM-03 stage reached assembly stage by June 2012, clearing the way for the next phase of upgrades, which became known as 14S48 Persei.

As of February 2013, the processing of Block DM-03 for the second launch was scheduled to start at Site 254 on April 16, to enable the launch between June 25 and June 28, 2013. During this period, the launch vehicle was expected to make a test run to the launch pad for the fueling of the main tanks of the DM-03 stage. It would then be returned back to the assembly building and processed for launch one more time.

The Proton rocket with Block DM-03 No. 2L lifted off on July 2, 2013, but crashed seconds later. The upper stage obviously never had a chance to fire.

Third, fourth and fifth launches

According to original plans, on Jan. 6, 2015, RKK Energia planned to ship a pair of DM-03 stages (No. 3L and No. 5L) to Baikonur for launches of GLONASS trio and Ekspress-AM8 satellite. However in the end, only the 5L vehicle was shipped at the time, while No. 3L was left at RKK Energia to wait for the next order to replenish GLONASS constellation. At the time, DM-03 was also expected to be used for the launch of the Ekspress-AMU1 satellite.

Block DM-03 finally flew a successful mission with Ekspress-AM8 on September 14, 2015. Two more successful missions, delivering the Spektr-RG observatory into deep space, and the Elektro L-3 weather satellite into the geostationary orbit, flew in 2019.

During the same year, Krasmash also reported the completion of production of one 11S861-03 stage. Two more 11S861 stages were scheduled for completion at Krasmash in 2020, the company said.

Flying on Angara (INSIDER CONTENT)

The first 14S48 stage on top of the third Angara-5 rocket in December 2021.

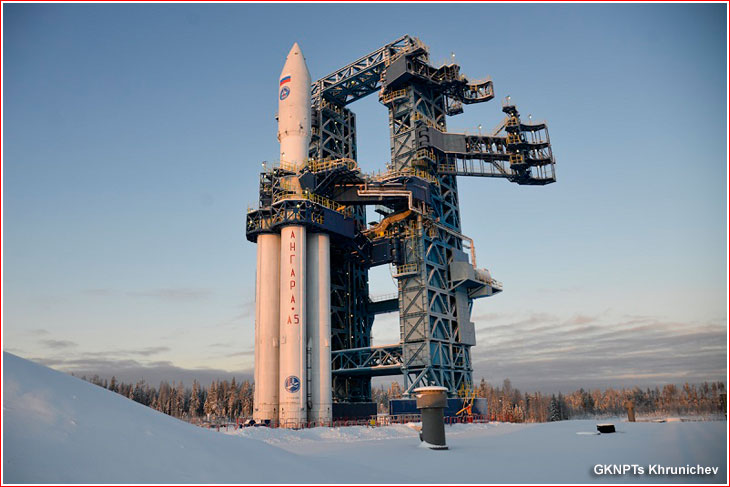

On Dec. 27, 2021, Russian military personnel at the Plesetsk range, north of Moscow, performed the third test launch of the next-generation Angara-A5 rocket. During the mission, the newly configured vehicle carried the first Persei space tug which failed to insert a simulated cargo into a target orbit.

Proton launches Angosat-2 communications satellite

On Oct. 12, 2022, specialists in Baikonur cosmodrome successfully launched the second Russian-built spacecraft for the government of Angola, meant to replace its predecessor that failed immediately upon reaching orbit in 2017.

First flight from Vostochny (INSIDER CONTENT)

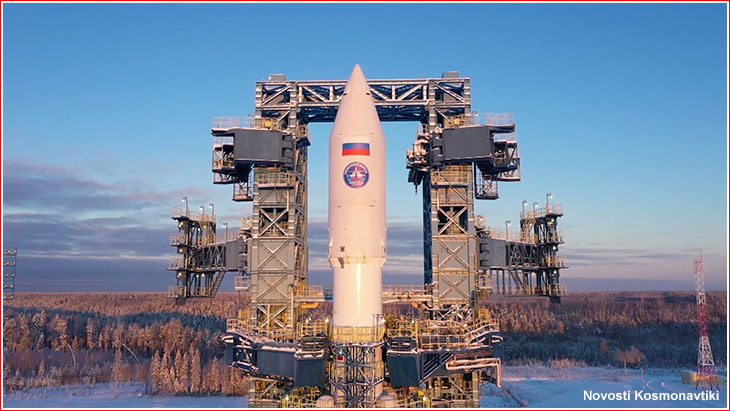

The completion of the new launch pad for the Angara family of rockets at Vostochny spaceport in 2023, opened the door to the first test launch from the site of the Angara-5 rocket with a variant of the Block DM-03 stage developed under OKR Orion development project. It was essentially Phase I, Variant 2 upgrade of the baseline Block DM-03 space tug.



Summary of Block DM-03 (11S861-03) missions:


Stage No.
Launch date
Launch vehicle
Launch site
Payload
Notes
1
1L (Phase I, Variant 1)
2010 Dec. 5
Manufactured in 2010. Did not fire due to launch vehicle failure.
2
2L (Phase I, Variant 1)
2013 July 2
GLONASS-M No. 48, 49, 50
Manufactured in 2010. Did not fire due to launch vehicle failure.
3
5L (Phase I, Variant 1)
2015 Sept. 14
Manufactured in 2013. Launched successfully.
4
4L (Phase I, Variant 1)
Originally built for the Ministry of Defense. Possibly, it was originally planned for GLONASS launch in 2016. Launched successfully.
5
3L (Phase I, Variant 1)
2019 Dec. 24
Manufactured in 2011 for GLONASS-M launch in 2016 but used for Elektro-L3
6
6L
2022 Oct. 12
Originally manufactured for the Elektro-L3 mission.
7
7L
2023 Feb. 5
Launched successfully
8
8L
Planned
Elektro-L No. 5






Summary of Block DM-03 (14S48/Persei) and OKR Orion-based upper stage launches:

-
Stage No.
Launch date
Launch vehicle
Launch site
Payload
Status
1
1L (IC)
2021 Dec. 27
Dummy cargo
Failure
2
2024 April 11
Mass and size simulator, GMM
Success









insider content

The article and photography by Anatoly Zak; Last update: May 7, 2024

Page editor: Alain Chabot; Last edit: September 22, 2015

All rights reserved



insider content



stage

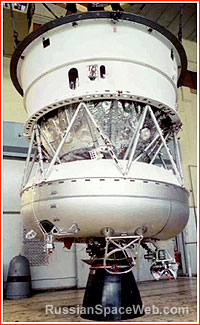

Block DM-03 stage.


11d58mf

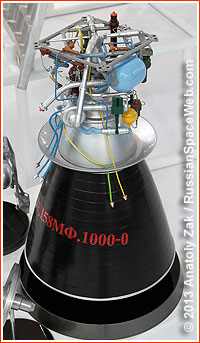

The first copy of the next-generation 11D58MF engine, which will propel most advanced versions of the Block DM-03 space tug. Copyright © 2013 Anatoly Zak


rotation

Block DM-03 during processing in Baikonur. Credit: RKK Energia


fuel_tank

Fuel tank of the Block-DM stage. Click to enlarge. Copyright © 2011 Anatoly Zak


Proton

Proton lifts off on an ill-fated mission with GLONASS satellites on Dec. 5, 2010. Credit: Roskosmos


toreoff

The second flight-worthy Block-DM-03 was lost on July 2, 2013. Click to enlarge.


integration

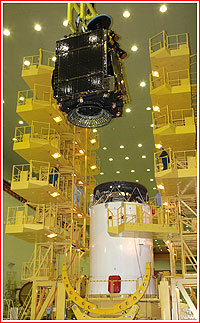

Ekspress-AM8 during integration with Block DM-03 No. 5L upper stage in Baikonur on Sept. 4, 2015. Click to enlarge. Credit: Roskosmos


flight

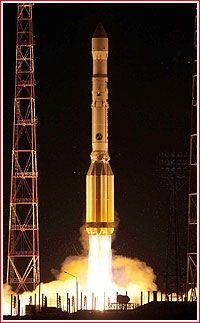

Proton lifts off with Block DM-03 No. 5L and Ekspress-AM8 on Sept. 14, 2015. Click to enlarge. Credit: Roskosmos


rotating

Block DM-03 with the Spektr-RG observatory is being prepared for launch on June 5, 2019. Click to enlarge. Credit: Roskosmos


vostochny

A training simulator likely representing systems of the Block DM-03 stage was built in Vostochny around 2020 in anticipation of the Angara-5/Block-DM03 rocket. Click to enlarge. Credit: Roskosmos


vostochny

Block DM-03-based upper stage and its payload are being prepared for integration with the fourth Angara-5 rocket (INSIDER CONTENT) in March 2024. Click to enlarge. Credit: Roskosmos


vostochny

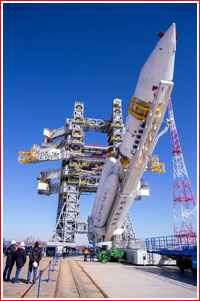

The fourth Angara-5 rocket (INSIDER CONTENT), equipped with Block DM-03-based upper stage is being installed on the launch pad in Vostochny on March 26, 2024. Click to enlarge. Credit: Roskosmos


plesetsk

The fourth Angara-5 rocket (INSIDER CONTENT), equipped with Block DM-03-based upper stage lifts off from Vostochny for the first time on April 11, 2024. Click to enlarge. Credit: Roskosmos
