The 5M flight scenario: Cruising to Mars

Depending on the time of its launch, which could be in 1979, 1981 or 1984, the Soviet Mars sample return mission would have to spend between nine and 11 months in transit from the Earth's orbit to the Red Planet.


Bookmark and Share

departure

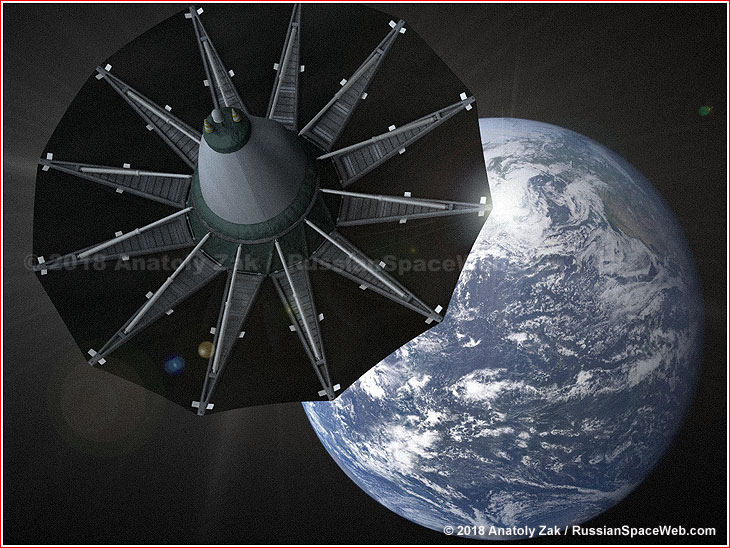

The 5M spacecraft departs Earth's orbit on its way to Mars.

From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

According to the preliminary design of the 5M project, the Mars-sampling spacecraft would need a total increase in velocity from 3.72 to 3.77 kilometers per second to leave the Earth's orbit and head toward Mars, depending on the year of the launch.

In any case, a total of three autonomous trajectory corrections were planned on the way between the Earth and Mars to ensure accurate arrival at the Red Planet. They would deliver a total of 115 meters per second in velocity change.

Around 30 days before approaching Mars, all batteries of the trajectory module, TB, the landing platform and the return vehicle had to be fully charged.

Around 55,000 kilometers from Mars, the 5M spacecraft was to activate its autonomous navigation system in order to make the trajectory measurements necessary for the autonomous trajectory correction ensuring precise entry into the atmosphere of Mars. Once the maneuver was completed, the trajectory module, TB, and the landing module, PB, would separate from each other. Around 45 minutes after the separation, the TB module would conduct another maneuver delivering around 200 meters per second to enter a Mars flyby trajectory, missing the surface by around 2,500 kilometers. During that period for around 38 minutes, the TB module would relay the telemetry data from the lander back to mission control on Earth, as the lander conducted reentry and landing on Mars.

If the 5M mission was launched in the fall of 1979, the lander would reach Mars between Sept. 17 and 24, 1980. A launch at the end of 1981 would result in the Mars arrival between Oct. 6 and 12, 1982. In case of a January 1984 launch, the Mars landing would take place between Oct. 24 and 30, 1984.

ak1

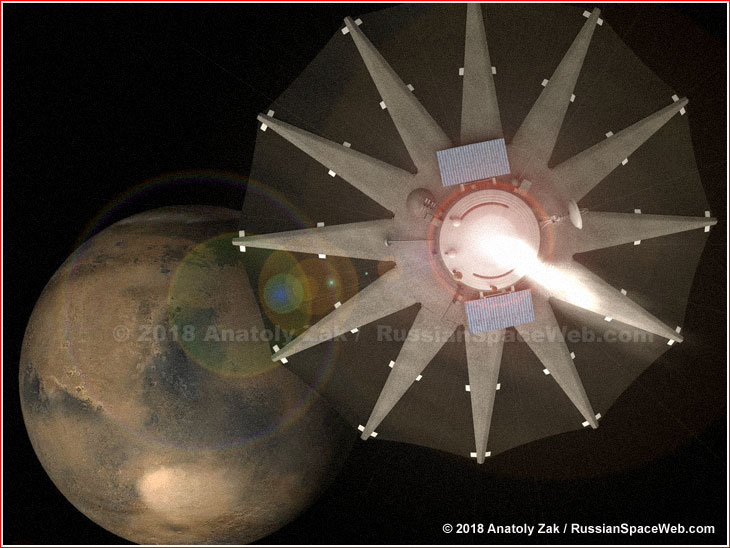

The 5M spacecraft conducts orbit correction upon its approach to Mars.



Specifications of the Earth-Mars-Earth trajectory of the 5M mission with three launch windows in 1979, 1981 and 1984:

-
1979
1981
1984
Launch from Earth
1979 Oct. 30 - Nov. 14
1981 Nov. 27 - Dec. 12
1984 Jan. 8-23
Cruise duration of the 3M spacecraft
314-322 days
304-313 days
281-290 days
Date of arrival at Mars
1980 Sept. 17-24
1982 Oct. 6-12
1984 Oct. 24-30
Duration of active operations on the surface of Mars
2-3 days
2-3 days
2-3 days
Duration of presence in the orbit of Mars
Approximately 350 days
Approximately 420 days
Approximately 460 days
Date of departure from Martian orbit
1981 August - September
1983 October - November
1986 January - February
Duration of the flight from Mars to Earth
Approximately 340 days
Approximately 316 days
Approximately 224 days
Date of arrival at Earth
1982 July - August
1984 September - October
1986 August - September
Total mission duration
Approximately 1,030 days
Approximately 1,030 days
Approximately 980 days



Velocity specifications of the Earth-Mars-Earth trajectory of the 5M mission with three launch windows in 1979, 1981 and 1984:

-
1979
1981
1984
Velocity (delta V) for Earth departure
3.72 kilometers per second
3.72 kilometers per second
3.77 kilometers per second
Velocity for separation of the Trajectory Section, TB, (cruise stage)
200 meters per second
200 meters per second
200 meters per second
Total velocity for the Earth-Mars trajectory corrections
115 meters per second
115 meters per second
115 meters per second
Mars atmosphere entry velocity
5.75 kilometers per second
6.00 kilometers per second
6.40 kilometers per second
Total velocity change for Mars orbit corrections
150 meters per second
150 meters per second
150 meters per second
Velocity for Mars orbit escape (500-kilometer; 12-hour period)
1,030 kilometers per second
0.985 kilometers per second
1,030 kilometers per second
Total velocity for the Mars-Earth trajectory corrections
100 meters per second
100 meters per second
100 meters per second
Velocity for entry into the Earth's atmosphere
12.35 kilometers per second
12.57 kilometers per second
12.10 kilometers per second



(To be continued)
