Last Rockot launches a satellite cluster

The final Russian space shot of 2019 in the early hours of December 27, was also the last flight of the Rockot booster equipped with a Ukrainian-built flight control computer. The converted ballistic missile successfully delivered a cluster of Gonets-M communications satellites and a hitchhiker payload.


Bookmark and Share

launch

The 15th Gonets-M mission at a glance:

Payloads
Gonets-M No. 24, 25, 26, Blits-M
Launch vehicle
Launch site
Launch date and time
2019 December 27, 02:11:57.956 Moscow Time

Passengers aboard the last Rockot mission

The primary payload of the Rockot mission is the 15th group of three Gonets-M low-orbital communications satellites. They received official production numbers No. 24, 25 and 26. The same launch was also expected to deliver a pair of polished glass spheres called Blits-M which are used as laser reflectors in high-accuracy gravitational studies, even though only one actually made it onboard the rocket. The Blits series was developed at SPP, a Roskosmos enterprise specialized in guidance and tracking systems for the military and space industry. In addition, the Radio-2017 experimental satellite was originally planned to piggy-back on the same rocket, but was not ultimately included into the payload.

Preparations for flight

The 15th Gonets-M mission was originally expected to lift off as early as the Fall of 2016, just a year and a half after the previous trio of Gonets satellites was orbited in March 2015. ISS Reshetnev in Zheleznogorsk completed the construction of the final satellite for the fresh Gonets trio in July 2016.

However, after the annexation of Crimea in 2014, supplies of the Ukrainian-built flight control system for the Rockot came into question. The possibility of moving Gonets missions from Rockot to Soyuz-2-1v were apparently considered but ruled out. Eventually, the Russian industry was apparently able to secure a limited number of Ukrainian flight control units and spare parts for the Rockot, thanks to mediation by the Europeans, who needed Rockot for their own payloads, such as Sentinel satellites. However, along with the hardware, the Russian military, operating Rockot in Plesetsk, likely needed help from Ukrainian specialists to prepare the vehicles for launch. While such assistance could be arranged for European missions, it could be much harder to do for exclusively Russian missions.

In any case, during 2016, the Gonets launch slipped to the beginning of 2017 and, by the end of the year, the mission moved to the third quarter of 2017. By the middle of 2017, the launch was pushed to the end of the year. There were reports about planning the launch for October 2018, but more delays followed.

At last, in September 2019, the delivery of the Gonets satellite trio from ISS Reshetnev to Plesetsk was finally promised for October and the launch for the end of November 2019. However, by the beginning of that month, the launch was postponed until the end of December 2019.

On November 11, 2019, GKNPTs Khrunichev announced that a Briz-KM upper stage, a payload fairing and an adapter had been delivered to Plesetsk for an upcoming launch with multiple spacecraft, clearly referring to the 15th Gonets-M mission.

At the beginning of December, the launch was set for the 27th of that month.

On December 19 and 22, 2019, Russian authorities issued warning to sea and air traffic to avoid three areas in the Barents Sea and the East-Siberian Sea, where fragments of the booster were expected to fall. The launch window, according to the notifications, extended from 22:30 to 23:59 UTC and from 01:30 to 02:59 UTC on December 26, 27, and 28.'

According to industry sources, the liftoff was scheduled on December 27, 2019, at 02:11:58.000 Moscow Time.

Gonets-M launch profile

insertion

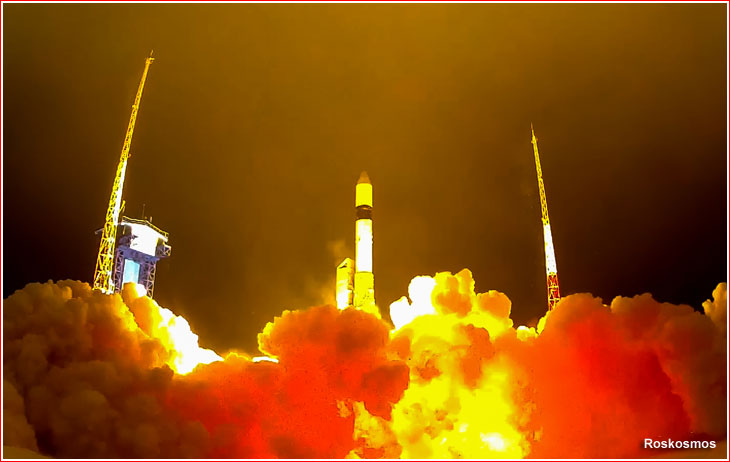

A Rockot/Briz-KM vehicle lifted off as scheduled into foggy night sky from Site 133 in Plesetsk on December 27, 2019, at 02:11:57.956 Moscow Time (6:12 p.m. EST on December 26).

Typically for Gonets launches, the rocket headed northeast separating its first stage around two minutes after liftoff at an altitude of around 70 kilometers. The spent booster then fell into the Barents Sea, west of the Novaya Zemlya archipelago. The payload fairing, protecting the payload, split in two halves and separated 40 seconds into the operation of the second stage at an altitude of 120 kilometers, beyond any discernable air pressure.

The second stage was to fire until five minutes into the flight, lifting its cargo to around 250 kilometers into space, before separating and splashing down in the Arctic Ocean, northeast of the Novosibirsk Islands.

Several minutes after the planned separation of the second stage, the official Russian media, quoting the Ministry of Defense, confirmed that ground assets of the Titov Chief Test Center of the Space Forces began tracking the vehicle at 02:14 Moscow Time. The Russian military also confirmed that the payload section had separated from the upper stage as planned at 02:17 Moscow Time.

Around four seconds after separation from the second stage, the Briz-KM upper stage was expected to fire its own engine for about nine minutes in order to reach a 160 by 1,479-kilometer transfer orbit with an inclination 82.5 degrees toward the Equator. The vehicle was then in passive ascent along its egg-shaped orbit. After the stack reached the highest point of the transfer orbit around an hour later, the Briz-KM re-started its engine for about a minute, forming the target circular orbit of the mission at an altitude of 1,500 kilometers above the Earth surface and extending from the South Pole to the North Pole of the planet. Gonets satellites apparently separated from the upper stage one hour, 50 minutes after launch and 11 minutes later, Briz-KM is normally programmed to fire its engine for less than two minutes to perform a payload avoidance maneuver.

Shortly thereafter, Roskosmos and the Ministry of Defense confirmed that all launch operations had gone according schedule and that the satellites had been inserted into their planned orbit. The Russian military also said that the Gonets spacecraft had been transferred under control of the customer -- AO Gonets. Finally, the avoidance manuevers of the Briz-KM stage were reported as successfully completed.

According to ISS Reshetnev, the spacecraft separation took place at 03:55 Moscow Time (on December 27, 2019) at an altitude of 1,500 kilometers.

There was some initial confusion on the fate of the Blits-M sphere, because the original official announcement published after the launch was quickly edited down to exclude the specific language confirming the successful deployment of Blits-M in its planned orbit. However, by the morning of December 28, 2019, the Combined Space Operations Center, CSpOC, in the United States listed five objects associated with the mission, likely representing three Gonets-M satellites, Blits-M and the Briz-KM stage:

NORAD ID
Satellite name International ID
Orbital period
Orbital inclination
Apogee
Perigee
44905
Object A 2019-096A
116.03 minutes
82.52 degrees
1,506 kilometers
1,498 kilometers
44906
Object B 2019-096B
116.06 minutes
82.53 degrees
1,507 kilometers
1,500 kilometers
44907
Object C 2019-096C
116.08 minutes
82.52 degrees
1,509 kilometers
1,500 kilometers
44908
Object D 2019-096D
116.06 minutes
82.53 degrees
1,507 kilometers
1,500 kilometers
44909
Breeze-KM R/B 2019-096E
112.53 minutes
82.52 degrees
1,504 kilometers
1,182 kilometers





insider content




Article and illustrations by Anatoly Zak; Last update: December 28, 2019

Page editor: Alain Chabot; Last edit: December 26, 2019

All rights reserved

insider content



Gonets-M

An official photo showing the Gonets-M satellite. Click to enlarge. Credit: ISS Reshetnev


Gonets

A photo of a Gonets satellite released on July 2, 2014. Click to enlarge. Credit: Roskosmos


briz

Rockot with 15th group of Gonets-M satellites lifts off on December 27, 2019. Click to enlarge. Copyright © 2015 Anatoly Zak


briz

First engine firing of the Briz-KM stage during the delivery of the Gonets trio. Click to enlarge. Copyright © 2015 Anatoly Zak


Gonets-M

Gonets-M in orbit. Click to enlarge. Copyright © 2019 Anatoly Zak


Gonets-M

Gonets-M in orbit. Click to enlarge. Copyright © 2019 Anatoly Zak
