Russia launches new weather watcher

On July 8, 2014, Russia orbited its latest version of a weather-forecasting and remote-sensing satellite, known as Meteor-M No. 2 (a.k.a Meteor-M2). The same rocket also released a cluster of secondary payloads.

Previous chapter: Meteor satellite series

Bookmark and Share

launch

Jellyfish

Meteor-M No. 2 lifts off on July 8, 2014.

From the publisher: Please help to keep this site open and current! The pace of our development depends primarily on the level of support from our readers.

Donate

Meteor-M No. 2

M2

Meteor-M No. 2 satellite. Credit: Roskosmos

The 2,778-kilogram Meteor-M No. 2-1 satellite (a.k.a. Meteor-M2) was designed to watch global weather, the ozone layer, the ocean surface temperature and ice conditions to facilitate shipping in polar regions and to monitor radiation environment in the near-Earth space. The payload package onboard Meteor-M No. 2 includes:

  • Multi-channel imaging scanner, MSU-MR
  • Multi-channel imaging complex, KMSS
  • Ultra-high frequency temperature and humidity radiometer, MTVZA-GYa
  • Infrared Fourier spectrometer, IKFS-2
  • Radar complex, BRLK Severyanin
  • Heliophysics instrument complex, GGAK-M
  • Radio relay complex, BRK SSPD

The satellite was designed to operate in orbit for five years. It will become the second spacecraft in the Meteor-3M network, complementing the Meteor-M No. 1 satellite, which was launched on Sept. 17, 2009. In addition, the Russian space program funds the development of the two similar Meteor-M No. 2-1 and 2-2 satellites, as well as the Meteor-M No. 3 satellite, which is custom-designed to carry a phased-array radar for high resolution observations of the ocean surface. All spacecraft in the series were developed by the Moscow-based VNIIEM corporation based on its Resurs-UKP platform. As of beginning of 2014, the launch of the follow-on Meteor-M No. 2-1 satellite was scheduled for 2015.

Secondary payloads:

TechDemoSat-1

The heaviest secondary payload riding to orbit along with the Meteor-M2 satellite is the 157-kilogram TechDemoSat-1 satellite (a.k.a. TDS-1) developed by the British company Surrey Satellite Technology Ltd, SSTL, in Guildford, UK. The spacecraft is based on the company's standard SSTL-150 platform and carries eight instruments supplied by various British developers. They include payloads for the monitoring of the ocean surface through tracking GPS signals and an infrared radiometer for scanning of the Earth's surface, as well as "space weather" sensors designed to detect charged particles. The satellite is also equipped with a solar sail, which is expected to be used for the reentry into the Earth atmosphere at the end of its operational life in orbit. TechDemoSat-1 was partly funded by the British government through its Technology Strategy Board.

SkySat-2

A US-based startup company Skybox Imaging is launching its second test satellite with a mass of around 100 kilograms, carrying a camera for photographing the Earth's surface.

MKA-FKI (PN2) Relek

MKA-FKI Relek spacecraft built by Moscow-based NPO Lavochkin is based on the Karat platform and will be used for ionospheric research.

DX1

The DX1 satellite was built by Dauria Aerospace and will carry the first Russian-developed payload for the Automatic Identification System, AIS, used by sea vessels around the world. It will be used by the company and by the Russian Transport Ministry. The main body of the 22-kilogram spacecraft measures 20 by 30 by 40 centimeters.

AISSAT-2

The 7-kilogram AISSAT-2 satellite was built by a laboratory at the University of Toronto, SFL/UTIAS, for the Norway's space center. Like DX1, it will carry the Automatic Identification System, AIS, payload.

UKube-1

The 3.5-kilogram UKube-1 satellite was built by Clyde Space Ltd. of Glasgow, Scotland, for the United Kingdom Space Agency, UKSA. Based on the 3U platform, the satellite carries four payloads developed in the UK, including an imaging sensor.

Mission history

At various points in time, the secondary payloads during the launch of Meteor-M No. 2 also included the Baumanets-2 experimental satellite for the Bauman State Technical University in Moscow, the M3MSat for the Canadian Space Agency and Venta-1 for Ventspils University, Latvia. Baumanets-2 and Venta-1 were dropped from the mission at the early planning stage. However, the M3MSat sea-watching satellite built by COMDEV was pulled from the mission in April 2014 by the Canadian government, as a result of the Russian conflict with Ukraine. However, in order not to change dynamic parameters of the Fregat upper stage and avoid resulting changes and re-checks of the flight program, mission planners added a mass mockup of the M3MSat, which would be released in orbit, as it had been originally planned for the actual satellite.

The main payload for the mission -- the Meteor-M No. 2 satellite -- arrived at Baikonur on April 17, 2014. Its launch was originally scheduled for March 2013, but technical problems with the satellite pushed the mission to August-September period, then to December, then to late February 2014 and to March 27, and, yet again, to June 1, June 19 and June 28, 2014. At the beginning of that month, the mission had to be postponed until July 8, this time, due to problems with the Fregat upper stage. The fueling of the stage was completed during the night from June 22 to June 23, 2014.

The pre-launch processing of the launch vehicle and its payloads for the mission was conducted at Site 31 in Baikonur. Meteor-M satellite was attached to its Fregat upper stage on June 28 and the integration of secondary payloads was completed by June 30. A fully assembled Soyuz-2-1b rocket was rolled out to the launch pad on the morning of July 5, 2014.

On the afternoon of the launch day, Roskosmos announced the State Commission overseeing the launch cleared the rocket for fueling, however, a sentence promising live video broadcast of the liftoff was edited out from the online version of the press-release. A broadcast page was also deleted from a launch infrastructure contractor, TsENKI.

Launch profile

A Soyuz-2-1b rocket with a Fregat upper stage lifted off as scheduled from Site 31 in Baikonur Cosmodrome on July 8, 2014, at 19:58:28 Moscow Time (11:58 a.m. EST). The launch vehicle is carrying a Meteor-M No. 2 spacecraft, along with a cluster of six secondary satellites.

Following its liftoff from Baikonur, the Soyuz-2-1b rocket headed north, inserting the Fregat upper stage and its seven payloads into an initial 191 by 212-kilometer parking orbit with an inclination 98.8 degrees toward the Equator, while flying over the Arctic Ocean. Four boosters of the first stage impacted drop zone No. 120 on the border of Kostanai and Aktyubinsk regions in Kazakhstan and the second stage, the tail section of the third stage and a payload fairing were to fall at drop zone No. 401 between Permskiy Krai and Sverdlovsk Oblast in Russia. The third stage of the rocket reached orbit.

The Fregat then fired its own engine to stretch the orbit into an elliptical shape with an apogee (highest point) of almost 814 kilometers. After a period of passive climb, the Fregat will fire its engine again near the apogee to circularize the orbit.

The Meteor-M No. 2 spacecraft was then released into a near-polar, Sun-syncrhonous orbit, which will keep it on the sunlit side of the Earth. The satellite's developer -- VNIIEM corporation -- publically confirmed a successful delivery of the satellite at 19:58 Moscow Time.

After returning into the range of Russian ground stations, Fregat conducted its third maneuver to lower its orbit to 638 by 825 kilometers, where a top section of a truss that served as an interface between the Fregat and the Meteor was jettisoned. Then, the MKA-FKI (PN2) satellite was successfully released. The Fregat then conducted its fourth firing, lowering the orbit to 635 kilometers, where remaining secondary payloads and a mockup of the M3MSat spacecraft were deployed.

The Fregat will then conduct its fifth maneuver to plunge itself into the Earth atmosphere over the Pacific Ocean.

The Meteor-M No. 2 launch timeline on July 8, 2014:

Milestone

Moscow Time

Elapsed time, h, min, sec.

Apogee, km

Perigee, km

Inclination

Liftoff

19:58:28

0

-

-

-

Stage I separation

20:00:24.02

1 min 56 sec.

-

-

-

Stage II separation

20:03:14.86

4 min. 46.9 sec.

-

-

-

Stage III tail section separation

20:03:15.4

4 min. 47.4 sec.

-

-

-

Payload fairing separation

20:03:16.54

4 min. 48.5 sec.

-

-

-

Stage III engine cutoff

20:07:42.25

9 min. 14.3 sec.

-

-

-

Stage III separation

20:07:45.55*

9 min. 17.6 sec.*

-

-

-

Fregat engine firing 1 begins to form transfer orbit

20:08:44.9

10 min. 16.93 sec.

-

-

-

Fregat engine firing 1 ends

20:09:36.0

11 min. 07.95 sec.

813.62

189.98

98.8

Fregat engine firing 2 begins to form Meteor's orbit

20:56:11.3

57 min. 43.33 sec.

-

-

-

Fregat engine firing 2 ends

20:57:00.9

58 min. 32.85 sec.

837.9

800.5

98.81

Meteor-M No. 2 separation

20:57:31.0

59 min. 02.97 sec.

837.99

801.61

98.81

Fregat engine firing 3 begins to form transfer orbit

21:36:53

1 h. 38 min. 25 sec.

-

-

-

Fregat engine firing 3 ends

21:37:05.2

1 h. 38 min. 37.22 sec.

825.0

637.9

98.38

Separation of upper truss segment

21:37:35.2

1 h. 39 min. 07.22 sec.

825.07

635.33

98.38

Separation of MKA-FKI (PN2)

21:39:15.3

1 h. 40 min. 47.34 sec.

824.96

632.84

98.38

Fregat engine firing 4 begins to form separation orbit for five secondary satellites

22:25:23

2 h. 26 min. 55 sec.

-

-

-

Fregat engine firing 4 ends

22:25:30.8

2 h. 27 min. 2.76 sec.

642.7

641.6

98.4

Separation of TDS-2 and SkySat-2 satellites

22:28:00.9

2 h. 29 min. 32.88 sec.

642.54

634.26

98.4

Separation of the M3MSat mockup

22:30:00.9

2 h. 31 min. 32.88 sec.

642.49

632.11

98.41

Separation of the DX1 satellite

22:31:40.9

2 h. 33 min. 12.88 sec.

642.47

631.53

98.41

Separation of the AISsat-2 and UKube-1

22:32:40.9

2 h. 34 min. 12.88 sec.

642.47

623.13

98.41

Fregat engine firing 5 begins to deorbit the stage

23:26:08.3

3 h. 27 min. 40.3 sec.

-

-

-

Fregat engine firing 5 ends

23:26:31.5

3 h. 28 min. 03.49 sec.

654.0

13.6

98.49

*plus/minus 7.5 seconds

Meteor-M2 delivers its first image

On July 25, 2014, Meteor-M No. 2 delivered its first image using low-resolution scanning device, MSU-MR. According to Roskosmos, the instrument, operating in all its six spectral ranges, demonstrated good performance. On August 9, 2014, Roskosmos announced that the activation process for all instruments onboard the Meteor-M2 had entered its final phase and all payloads had undergone testing.

Key instrument onboard Meteor-M2 dead?

Okhotsk

Sea of Okhotsk imaged by Meteor M2's KMSS instrument on Jan. 13, 2015. However no radar pictures were provided as of January 2015. Click to enlarge.


Almost half a year after the launch of the Meteor-M2 satellite in July 2014, the Russian space agency, Roskosmos, published a number of press-releases on the flight testing of its newest meteorological satellite along with numerous photos delivered by its instruments. However as important was what was not said or shown -- in particular any mentioning of the onboard radar.

The 150-kilogram Severyanin (Northerner) X-band Synthetic Aperture Radar onboard Meteor-M satellites was designed to provide all-weather, day-and-night imagery of the Earth surface with a resolution as high as 400 meters.

Not counting an imaging radar onboard the military Kondor satellite, the Severyanin was unique for the Russian civilian space program and would be well suited for monitoring sea ice cover, oil spills, forest fires and other remote-sensing observations. Unfortunately, as of beginning of 2015, no images from the instrument have been made public and most observers presumed that the radar had failed despite more thorough ground testing than that of its ill-fated predecessor onboard the first Meteor-M satellite.

The next opportunity for the Russian meteorologists to operate a civilian Synthetic Aperture Radar might not come until the launch of the Meteor-MP spacecraft tentatively scheduled for 2021.

On January 15, 2015, Roskosmos announced that the flight testing of the Meteor-M No. 2 satellite had entered a final phase. The press-release stressed that the prolonged testing was the result of a long list of checks and the complexity of procedures providing the correct operation of onboard systems and high quality of remote-sensing data. The statement went on to say that all calibration and testing efforts provided enough data to conclude that the spacecraft had been ready for operations. By that time, Russian meteorological agency, Rosgidromet, joined Roskosmos in processing the satellite's data, the space agency said.

However payloads onboard the satellite, which were listed in the press-release did not include the Severyanin radar -- another strong indication that the instrument was dead. Moreover, at least one industry source said that the formal technical assignment for the Meteor-M system was edited to exclude the requirements for providing atmospheric measurements within limits necessary for practical application of such data. The list of measured parameters was also reduced, the source said.

Meteor-M2 images Hurricane Harvey

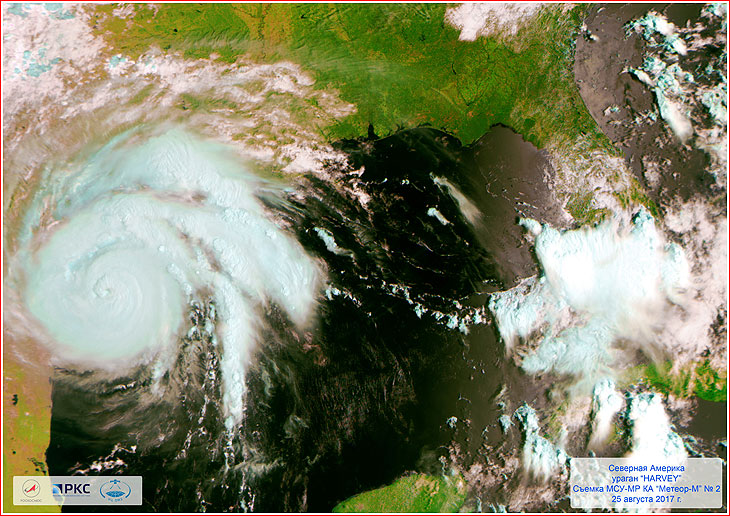

On Aug. 30, 2017, Roskosmos released a series of photos documenting Hurricane Harvey as it moved over the Gulf of Mexico and across the coast of Texas. The images were taken with the MSU-MR instrument and dated from Aug. 24 to Aug. 29, 2017, as the colossal storm was making its landfall, causing unprecedented floods in the southeastern Texas.

Harvey



Known specifications of the Meteor-M No. 2 satellite:

Orbit

Sun-synchronous

Orbital inclination

98.802 degrees toward the Equator

Orbital altitude (at the orbital ascending node)

825.5 kilometers

Orbital period

101.41 minutes

Liftoff mass

2,778 kilograms

Payload mass

approximately 1,250 kilograms

Average power supply system input

1.4 kilowatts

Maximum power supply system input

2.0 kilowatts

Operational attitude control system accuracy

3 angular minutes

Stabilization accuracy

0.001 degrees per second

Projected life span

5 years



Payloads onboard Meteor-M No. 2 satellite:

-

Instrument

Mission

Spectral frequency range

Scanning swath

Resolution (km)

1

MSU-MR

Cloud mapping, sea/land surface temperature

0.5-12.5 mkm (6 channels)

2,900 kilometers

1 kilometer

2

KMSS, MSU-100

Earth surface monitoring

Dual camera: 0.53-0.9 mkm

800 kilometers*

0.06 kilometers

3

KMSS, MSU-50

Earth surface monitoring

Single camera: 0.37-0.69 mkm (3+3 channels)

927 kilometers

0.12 kilometers

4

MTVZA-GYa

Atmospheric temperature and humidity profiling, wind measurements

10.6-183.3 GHz (29 channels)

1,500 kilometers

16-198 kilometers

5

IKFS-2

Atmospheric temperature and humidity profiling

5-15 mkm

2,500 kilometers

35 kilometers

6

BRLK Severyanin-M

Ice and snow monitoring

9,400-9,900 MHz

600 kilometers

0.8-1.3 kilometers (low-resolution mode);

0.4-0.65 kilometers (medium-resolution mode)

7

GGAK-M

Heliophysics monitoring in near-Earth space

Electrons flow density; Protons flow density, Ion composition, Shortwave reflected radiation;

8

BRK SSPD

Relay or meteorological data from automated platforms

Overage of 150 ground-based, ice and sea based stations

*with two cameras operating simultaneously



Summary of payloads during the Meteor-M No. 2 launch:

-

Payload

Mission

Developer

Mass

1

Meteor-M No. 2

Weather forecasting

VNIIEM, Russia

2,778-2,900 kilograms

2

TechDemoSat-1

Remote sensing

SSTL Ltd, UK

157 kilograms

3

SkySat-2

Remote sensing

SkyBox Imaging, USA

100 kilograms

4

M3MSat mass mockup

-

-

~100 kilograms

5

MKA-FKI (PN2) Relek

Ionospheric research

NPO Lavochkin, Russia

59 kilograms

6

DX1

Communications

Dauria Aerospace, Russia

22 kilograms

7

AISSAT-2

Navigation

SFL/UTIAS, Canada, Norway

7 kilograms

8

UKube-1

Experimental

Clyde Space Ltd, UK

3.5 kilograms






Bookmark and Share


Page author: Anatoly Zak; last update: August 31, 2017

All rights reserved

Book



KGCh

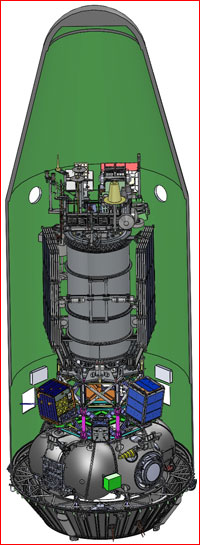

A payload arrangement during the launch of Meteor-M No. 2 satellite. Credit: NPO Lavochkin


Vacuum

Meteor-M2 satellite is being loaded into the vacuum chamber for pre-launch tests. Click to enlarge. Credit: Roskosmos


TDS-1

TechDemoSat-1 (TDS-1) satellite. Credit: SSTL


SkySat-2

SkySat-2. Credit: SkyBox imaging


DX-1

DX1 satellite. Credit: Dauria Aerospace


Aissat-2

AISSAT-2. Credit: University of Toronto


UKube

UKube-1. Credit: Clyde Space Ltd.


Installation

Installation of the SkySat-2 satellite on the Fregat upper stage. Click to enlarge. Credit: Roskosmos


payload

A full assembled payload section including Meteor-M No. 2 satellite, Fregat upper stage and secondary payloads. Click to enlarge. Credit: Roskosmos


Vertical

The Soyuz-2-1b rocket with Meteor-M No. 2 satellite shortly after its rollout to the launch pad on July 5, 2014. Credit: Roskosmos


Italy

The first image from the Meteor-M2 was obtained with the satellite's MSU-MR instrument on July 25, 2014. Click to enlarge. Credit: Roskosmos


Black Sea

An image from the Meteor-M2 was obtained with the satellite's MSU-MR instrument on July 30, 2014. Click to enlarge. Credit: Roskosmos


Yamal

Yamal-Nenetsk Region in Northern Russia imaged on Nov. 6, 2014. Click to enlarge. Credit: Roskosmos


Karsk

Yeniseisky Gulf in the Krasnoyarsk Region imaged on Nov. 6, 2014. Click to enlarge. Credit: Roskosmos


caucuses

Troubled Norther Caucuses region imaged on Jan. 14, 2015, by MSU-MR instrument onboard Meteor-M2 satellite. Click to enlarge. Credit: Roskosmos


storm

A tropical strom in the Indian Ocean imaged by MSU-MR instrument on Jan. 14, 2015. Click to enlarge. Credit: Roskosmos


solenoe

A photo of the Solenoe Lake in Russia delivered by Meteor M2's imaging system KMSS. Click to enlarge. Credit: Roskosmos
