Science and Power Module, NEM

The Science and Power Module, NEM, (industrial designation 371KK63) should become the most advanced component joining the Russian segment of the International Space Station. As its name implies, it will carry state-of-the-art laboratory facilities and large power-generating solar arrays. NEM will also will also provide additional living quarters and new flight control systems. The module could also serve as a cornerstone of a future Russian space station and a deep-space outpost.

Bookmark and Share

NEM

The NEM module as of 2016.


cutaway

Internal layout of the pressurized section of the NEM module. Credit: RKK Energia

Position

Three future Russian modules of the International Space Station. (Clickable) Sometimes before 2016, NASA convinced Roskosmos to move the module to the left docking port, along +Z axis of the Russian segment. Credit: RKK Energia

Origin of the NEM project

From the outset of the ISS project in 1993, the Russian segment of the orbital outpost was expected to include a specialized module combining functions of a space laboratory and a power-supply station. However the original version of the vehicle, known as Science and Power Platform, NEP, stalled on the ground around 2001 due to lack of funds. As a result, Russia had to barter electricity for its segment from NASA. However by the middle of 2000s, RKK Energia jump-started an effort to make the Russian segment independent from any external power supply.

It was decided to transfer most functions of the cancelled NEP platform to a pair of NEM modules, which would be attached to side ports of the yet-to-be-launched Node Module, UM. The newly developed NEM module provided much larger habitation volume than that available inside the cancelled NEP platform.

Both NEM spacecraft were to carry large solar panels with a total area of 155 square meters. The solar panels would be attached to their host spacecraft via a special rotating mechanism provided by ISS Reshetnev, the nation's prime manufacturer of communications satellites. ISS Reshetnev also took responsibility for the antenna system of the NEM module.

The module's power-supply system was expected to produce 18 kilowatt of electricity at the beginning of its life in orbit. Up to 12 kilowatt of this power could be channeled to the rest of the Russian segment at the station.

Last but not least, the NEM module would be equipped with a new-generation antenna enabling 24-hour communications with Russian ground stations via Luch-5 satellites. As a result, the Russian segment would no longer be dependent on the American satellite network.

New architecture

NEM

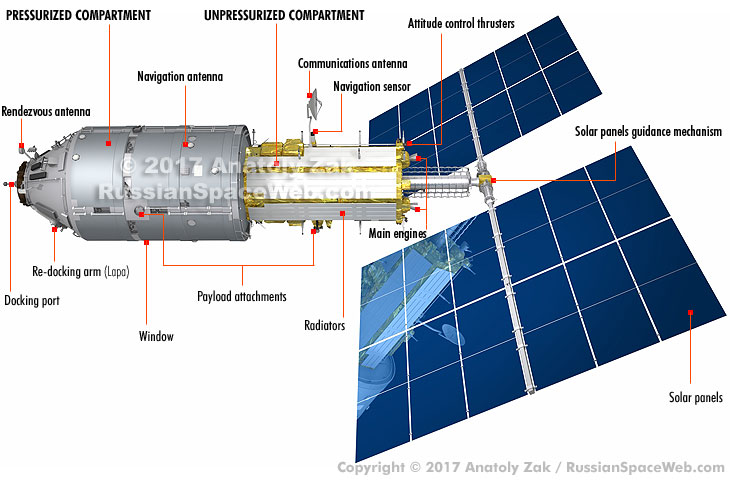

Isolated view of the NEM module as of 2014. Copyright © 2015 Anatoly Zak / RussianSpaceWeb.com

NEM modules were expected to feature an entirely new design, finally ending the reliance on the architecture of Vladimir Chelomei's TKS spacecraft, which had served as the basis for almost all Soviet and Russian space station modules exceeding 10 tons in mass. From the early days of the Mir space station, its developers complained that TKS-based modules were too bulky for the role. Still, after several incarnations, which considered one and two-launch scenarios, RKK Energia settled on a module large enough to require a Proton rocket, capable of delivering around 20 tons into the low Earth orbit.

Inside the module, engineers planned the installation of standard payload racks which would enable easy replacement of service systems and scientific instruments. Such a modular design echoed the architecture adopted for US modules on the ISS and for the European Columbus laboratory.

The module would also carry its own life-support systems and could feature a sleeping compartment, giving it a property of a fully independent space station. Thanks to its modular architecture, sleeping quarters and scientific payloads would be interchangeable.

Going to Lagrange and other missions

In addition to expanding the ISS, Russian developers viewed the NEM module as the basis for future Russian efforts to send humans beyond the Earth orbit. Thanks to its multi-function design, life support and power-supply capability, one or a whole cluster of such vehicles could provide habitation quarters and laboratories for a station at the so-called Lagrange points, which were considered as a staging ground for the exploration of the Moon, asteroids and Mars.

In case of an international agreement on the construction of a manned outpost in the Lagrange point, the NEM-based laboratory could constitute the Russian contribution into the effort. The NEM-based outpost could be serviced and staffed by the crews of US-European Orion spacecraft and by Russia's next-generation spacecraft, PTK NP.

Simularly, the NEM module, possibly in combination with other hardware, could serve as an outpost in the orbit around the Moon.

Also in 2014, plans were hatched to make the NEM-based laboratory a part of the post-ISS Russian space station, VShOS, in the high-inclination orbit.

Development

In the spring of 2012, Russian space agency, Roskosmos, ordered a fleet of four Proton-M rockets, one of which was reserved for the launch of the NEM-1 module. According to the tender documentation, the rocket would have to be manufactured by November 25, 2014.

In October 2012, the agency also announced a tender for the 15.15-billion ruble contract covering the development of the NEM-1 module itself until the end of November 2015. Not surprisingly, on October 30, Roskosmos awarded this work to RKK Energia, despite a lower bid from Moscow-based GKNPTs Khrunichev, the manufacturer of the Proton rocket and TKS-class modules. However, at the time, Roskosmos, funded the development of only one NEM module. If a single NEM was attached to the Russian segment at the originally planned location, it would cause an asymmetry in the layout of the outpost, thus complicating the attitude control of the station and increasing propellant expenditure.

Also, due to its unique architecture, the NEM module could not use any of standard payload fairings protecting the cargo of Proton rockets during the initial ride through the atmosphere. To resolve the problem, from 2012 to 2014, Zhukovsky Central Aero–Hydrodynamics Institute, TsAGI, was conducting wind-tunnel testing of a custom-designed payload section for the Proton, which could accommodate the NEM module.

As of the beginning of 2014, RKK Energia was yet to resolve another critical issue of manufacturing NEM modules. In a very unusual move for the Russian rocket industry, the company announced that it would consider bids from both domestic and foreign spacecraft developers. However, during the Farnborough air show in July, the head of RKK Energia Vitaly Lopota told the Interfax news agency that according to an already approved agreement, the NEM module would be manufactured at RKTs Progress, the developer of the Soyuz family of rockets. According to Lopota, the module would be completed by the end of 2016. Also in 2013, some unidentified responsibility for the module was expected to be subcontracted to the KBKhA (KB Khimmash) rocket propulsion center in Voronezh.

NEM appears in metal in 2016

In the first half of 2016, ZAO Orbita, based in the city of Voronezh, announced that it had received a contract from RKK Energia for the development of the power distribution and control system, ARK, of the NEM module. According to the agreement, the work had to be completed by 2018.

Also, during 2016, RKK Energia conducted a number of ergonomic studies in the mockup of the module's interior, including a trial installation of the Chibis-M life-support equipment and of a panel of the control console, as well as an assessment of the coloring scheme for the module's interior.

On Oct. 27, 2016, RKK Energia announced that the pressurized compartment of the NEM module intended for static testing had been delivered from RKTs Progress in Samara to the company's facility in Korolev. The module was later to be integrated with a prototype of the unpressurized section of the NEM module and transferred to the TsNIIMash research institute for testing scheduled at the beginning of 2017, RKK Energia said.

The prototype of the NEM module for static testing was indeed shipped to TsNIIMash on Dec. 28, 2016, marking a major milestone in the project.

Launch dates

When the concept of the NEM-1 and NEM-2 modules first appeared in the Russian forward-looking documents, their launches were projected in 2014 and 2015, respectively, however by the start of the actual development in 2012, the launch of NEM-1 was expected no earlier than 2016. In 2013, the launch slipped to 2017.

The Russian version of the ISS schedule revealed at the beginning of 2014 indicated the launch of a single NEM module at the end of 2017. However by April 2014, the launch of NEM was not expected before the end of 2018. In the first half of 2015, the NEM mission slipped to 2019.

A station's flight manifest surfaced in April 2015 indicated the launch of the NEM module in the middle of the fourth quarter of 2019.

NEM module to house Kosmorobot

robot

On Nov. 11, 2016, RKK Energia announced that it had won a contract for the development of a mobile robotic system or Kosmorobot, which would take residence on the NEM module during the period from 2020 to 2024. Equipped with multiple robotic arms, the Kosmorobot will be able to crawl along the external railings of the NEM module, carrying cargo and conducting various activities, including installing and removing equipment, connecting electric cables and inspecting the module's surface. It is also expected to be able to cut through the soft thermal layers of the modules, provide lighting, screw and unscrew connectors and take samples from the surface.

Kosmorobot will be comprised of a base module, a power battery pack, two robotic arms, an attachment fixture, TV cameras and a transmitter/receiver. The interchangeable instrument kit will include a sampling set, screwdriver, scissors, a set for electric connection, a universal grapple and a specialized grapple for external railings. Robotic arms will have seven movement axis and carry their own technical vision cameras.

Developed in cooperation with TsNII RTK and NPO Androidnaya Tekhnika, Kosmorobot will be able to assist spacewalking cosmonauts, RKK Energia said.



Read (and see) much more about this and many other space projects in Russia
in a richly illustrated, large-format glossy edition:

cover

RUSSIA IN SPACE

The Past Explained, the Future Explored

Next chapter: OKA-T module

Bookmark and Share




Known specifications of the NEM module (as of 2013):

Spacecraft industrial designation(s)
575GK, 371KK63
Launch mass
21 tons
Pressurized section volume
94 cubic meters
Free volume
30 cubic meters, 15 cubic meters (for cargo)
Number of work sites
12
Solar panel area
155 square meters
Power output
12 - 18 (at the beginning of lifespan) kilowatts
Operational life span
No less than 17 years, including 2 years for pre-launch processing
Launch vehicle



Key dates in the development of the NEM-1 module:

2012 March 21 - April 23: Roskosmos conducts a tender for the supply of a Proton-M rocket for the launch of NEM-1 module.

2012 Oct. 30: Roskosmos awards a contract for the development of the NEM-1 module to RKK Energia.

2012 Dec. 20: RKK Energia and Roskosmos sign a contract for the development of the NEM-1 module.

2016 Oct. 27: A static prototype of the pressurized compartment for the NEM module arrives from Samara to Korolev for tests planned in 2017.

2016 Dec. 28: A fully assembled static prototype of the NEM module shipped from RKK Energia to TsNIIMash for testing.



Page author: Anatoly Zak; last update: May 13, 2017

Page editor: Alain Chabot; Edits: February 3, 2014; November 11, 2016, May 3, 2017

All rights reserved

Book

SIGNED COPIES NOW AVAILABLE!


MEDIA ARCHIVE

NEM

The NEM1 science and power module docks at the high-latitude space station. Click to enlarge. Copyright © 2014 Anatoly Zak


Shuttle

A circa 2004 concept of the NEM modules was designed for launch in the cargo bay of the NASA's Space Shuttle. Credit: RKK Energia


NEM

Russian segment

Renderings and a 2009 scale model depicting future configuration of the International Space Station, includes a Node Module and a pair of Science and Power Modules at the heart of the Russian segment. Each of the modules in this configuration would be assembled of two parts (top). Click to enlarge. Copyright © 2009 Anatoly Zak


scale

A scale model depicting NEM modules as of 2010. This architecture relied on a single Proton rocket for launch. Click to enlarge. Copyright © 2010 Anatoly Zak


nem

NEM

Design of the NEM module circa 2011. Credit: RKK Energia


folded

NEM

Design of the NEM module circa 2012. Notable are larger (three-fold) solar panels than those in the 2011 version of the design showing two-fold arrays. Credit: RKK Energia


design

The NEM module circa 2016. Credit: RKK Energia


simulator

A simulator of the NEM module under assembly at the trainer development contractor in Novocherkassk.


mockup

NEM

interior

An early full-scale prototype of the interior of the NEM module in 2013. The new version of the mockup was under construction in 2014. Click to enlarge. Credit: Mark Serov


fairing

Aerodynamic testing at the beginning of 2014 of a custom-built payload fairing intended to protect the NEM module during launch on a Proton rocket. Credit: TsAGI


nem

A prototype of the NEM module intended for static testing at RKK Energia in 2016. Credit: RKK Energia


Proton

A Proton rocket configured to carry NEM module. Credit: RKK Energia
