Nuclear UR-700: The unknown leviathan of the Moon Race

The largest rocket project in the Soviet effort to beat America to the Moon turned out to be also the most elusive for historians. Only during the celebration of the 100th birthday of its creator Vladimir Chelomei in 2014, did detailed information on the incredible nuclear-propelled UR-700 design finally emerge.

Previous chapter: UR-700

Bookmark and Share

UR-700

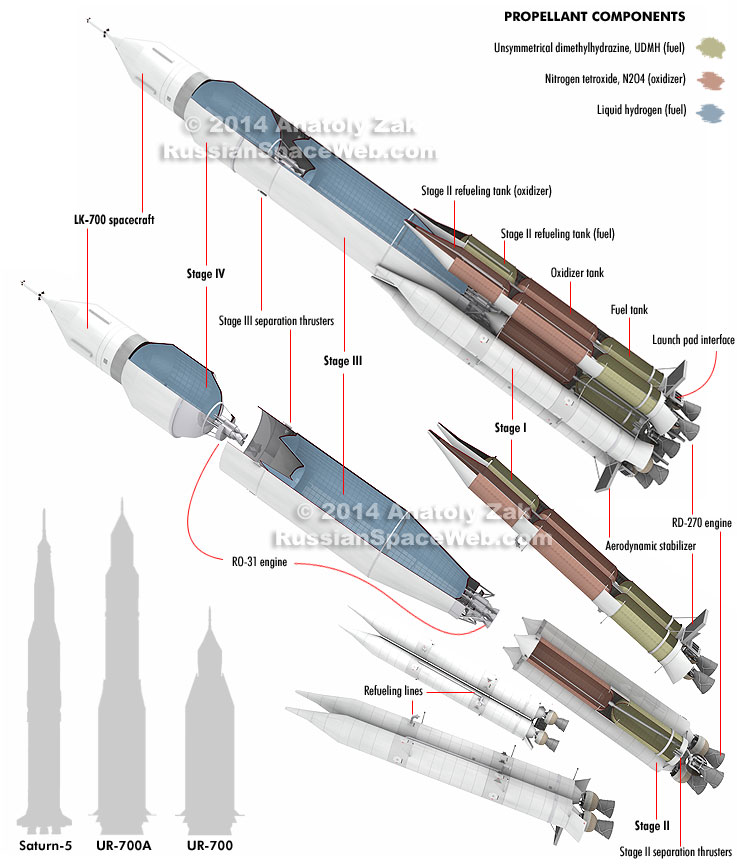

Above: The "atomic" version of the UR-700 launch vehicle. Copyright © 2014 Anatoly Zak

From the publisher: Please help to keep this site open and current! The pace of our development depends primarily on the level of support from our readers.

Donate

An atomic Moon rocket

During the 1960s, the prolific Soviet space designer Vladimir Chelomei led the development of the giant UR-700 rocket. It was conceived as a modular alternative to the "single-body" N1 booster, which was favored by the Soviet leadership for the politically urgent goal of landing a man on the Moon ahead of the US. However the N1 project masterminded by Sergei Korolev at the end of the 1950s, ran into numerous technical problems, not last of which, was the need to assemble the giant vehicle at the remote launch site in Baikonur in the midst of the Kazakh steppe and to develop a complex multi-engine propulsion system.

By the end of 1967, the Kremlin gave the green light to Vladimir Chelomei to work on the preliminary design of the UR-700 rocket as a backup to the troubled N1. Unlike the N1, Chelomei's rocket would be assembled out of components built in Moscow and transportable by rail. Even more importantly, it would use just 12 engines on its three stages, instead of 42 on the boosters stages of the N1. Finally, the UR-700 could launch 151 tons of payload versus 97 tons carried by the N1 and 127 tons delivered by the American Saturn-5.

In parallel with the development of the "regular" UR-700, Chelomei's engineers drafted a much bigger follow-on vehicle, which would be equipped with nuclear engines. (658) Known as Skhema "A" (Configuration "A") engine would feature the solid-core nuclear reactor and enable the UR-700 to deliver as much as 250 tons into the Earth orbit. In a more distance future, a nuclear engine with liquid-core reactor known as Skhema "B" (Configuration "B") would be developed, followed by an engine with a gaseous-core reactor dubbed Skhema "V" (Configuration "V").

The first two stages of the UR-700 rocket with "A" variant propulsion would be borrowed largely unchanged from the original UR-700. On both versions, the six boosters of the first stage would feed their own engines and, simultaneously, refuel the three boosters of the second stage. As a result, the second stage would have full tanks when it took over the powered ascent after the separation of the first stage.

In the meantime, the third and fourth stages of the "atomic" version of UR-700 would be developed from scratch and equipped with the revolutionary RO-31 nuclear engines (a.k.a. RD-0411) burning either cryogenic liquid hydrogen or liquid methane and developing a thrust of 40 tons. Seven such engines would be installed on the third stage and three would propel the fourth stage.

The third stage could have the job of sending a spacecraft on an escape trajectory from the Earth orbit and the fourth could conduct a braking maneuver near the Moon or Mars. The design work on the RO-31 engine was initiated at the KBKhA design bureau in the city of Voronezh in 1964. (717) On Oct. 26, 1965, the Soviet government issued a decree No. 842-304 giving a green light to the development of a small-scale prototype of a nuclear rocket engine known as RD-0410. (718) It was expected to propel an upper stage of the Proton rocket, launching future planetary probes into deep space. (156)

The atomic version of the UR-700 rocket was apparently expected to carry a manned spacecraft on a direct flight to the Moon with a crew reaching seven people. In addition, modules of the lunar base and components of a Martian expeditionary complex could also be launched. Finally, a single such rocket would be enough to launch a manned spacecraft to fly by Mars or Venus. (400)

Chelomei signed the completed preliminary design of the UR-700, (which apparently included a proposal for the "atomic" version), on Sept. 30, 1968. However the full-scale development of the UR-700 rocket was never funded as all the money and efforts were committed to making the N1 fly in the last leg of the race to the Moon.

UR-700M: The biggest rocket ever conceived?

However Chelomei apparently saw an even bigger chance for a follow-on to UR-700 within a year after the cancellation of the project. With the loss of the Moon Race to the US in 1969, Soviet politicians and engineers alike thought of a new frontier in the Space Race. One option would be to beat NASA to Mars!

By 1970, Chelomei's team asked the Moscow-based KBOM design bureau specialized in launch equipment to draft a launching pad that would be at the absolute limit of conceivable size. The facility had to accommodate the 16,000-ton colossus dubbed UR-700M capable of orbiting 750 tons of cargo. The three-stage vehicle would develop 23,400 tons of thrust at liftoff and launch the MK-700 Martian expeditionary complex in a single shot. The spacecraft was named Aelita after a famous Russian post-revolutionary sci-fi novel by Alexei Tolstoy.

In 1971, KBOM also fulfilled orders for launch pad designs for a two-stage version of the UR-700M rocket, which would probably be enough to orbit a giant manned outpost around the Earth.

To handle such a giant vehicle at the launch site, KBOM engineers had to abandon all accepted architectural principles of the Soviet rocketry, according to which a fully assembled space booster is transported in horizontal position and then erected onto its launch pad. Now, they had to adopt an American approach, delivering the rocket to the pad in vertical position. Moreover, the spacecraft would be transported separately and integrated with the rocket on the launch pad.

After considering three possible designs of the launch pad, the one involving a partially buried launch platform was adopted, probably in order to reduce associated wind pressure on the towering vehicle. Even more amazingly, Chelomei requested a provision for a simultaneous assembly of three such rockets at three individual launch pads. (112) More than 40 years after it has been conceived, the design of the monstrous vehicle still remains a mystery.

(More to come!)



Read (and see) much more about this and many other space developments in the USSR and in Russia
in a richly illustrated, large-format glossy edition:

Book

APPENDIX

Known specifications of the UR-700A and UR-700M rockets:

Specification
UR-700A
UR-700M/MK-700M
Payload mass (circular orbit with an altitude of 200 kilometers)
230-250 tons
750 tons
Payload mass from Earth orbit into deep space
105-115 tons
?
Launch mass
4,823 tons
16,000 tons
A total oxidizer load (Nitrogen tetroxide, N2O4)
2,892 tons
?
A total fuel load (Unsymmetrical dimethylhydrazine, UDMH)
1,092 tons
?
A total hydrogen or methane fuel
198 tons
?
A total thrust at liftoff
5,933 tons
23,400 tons
A total length of the vehicle
114.0 meters
?
Number of stages
4
3, 2
STAGE I
Six boosters-
?-
Propulsion system
Six RD-270 (8D420) engines
?
Oxidizer
Nitrogen tetroxide, N2O4
?
Fuel
Unsymmetrical dimethylhydrazine, UDMH
?
STAGE II s)
Three boosters-
?
Propulsion system
Three RD-270 engines
?
Oxidizer
Nitrogen tetroxide, N2O4
?
Fuel
Unsymmetrical dimethylhydrazine, UDMH
?
Total propulsion system thrust (three RD-270 engines)
2,058 tons
?
STAGE III
-
?
Propulsion system
Seven RO-31 engines (Thrust: 40 tons each)
?
Oxidizer
N/A
?
Fuel
Liquid hydrogen or liquid methane
?
Total propulsion system thrust
280 tons
?
STAGE IV
-
-
Propulsion system
Three RO-31 engines (Thrust: 40 tons each)
N/A
Oxidizer
N/A
N/A
Fuel
Liquid hydrogen or liquid methane
N/A
Total propulsion system thrust
120 tons
N/A





Bookmark and Share




Article, illustrations and photography by Anatoly Zak; Last update: January 8, 2015

Page editor: Alain Chabot; Last edit: September 21, 2014

All rights reserved

Book

MEDIA ARCHIVE

RD-270

RD-270 (8D420) engine was intended for the first stage of the UR-700 rocket. Copyright © 2002 Anatoly Zak


RD-0410

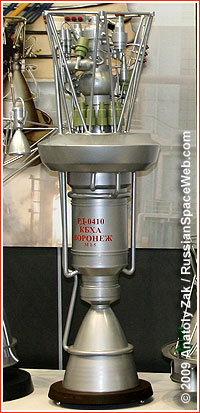

The RD-0410 experimental nuclear engine with a thrust of 3.6 tons was a prototype of the RO-31 engine, probably also known as RD-0411, with a thrust of 40 tons. Copyright © 2009 Anatoly Zak


Test

An experimental nuclear rocket engine fires at the Semipalatinsk test site. Credit: KBKhA


UR-700M

Two versions of the UR-700 rocket and its transporter in comparison to a two-stage UR-500 (Proton) rocket (left), which served as the "upper stages" for the UR-700. Copyright © 2001 Anatoly Zak


UR-700a

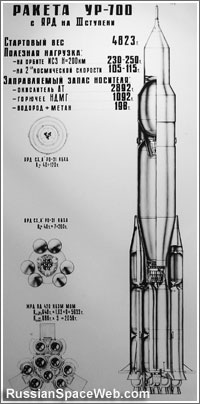

Historic drawings released in 2014 provided key details and specifications on the design of the UR-700 rocket equipped with nuclear engines.
