Launched on Jan. 20, 2011, the Elektro-L No. 1 meteorological satellite became the first major spacecraft developed in the post-Soviet Russia.

Elektro

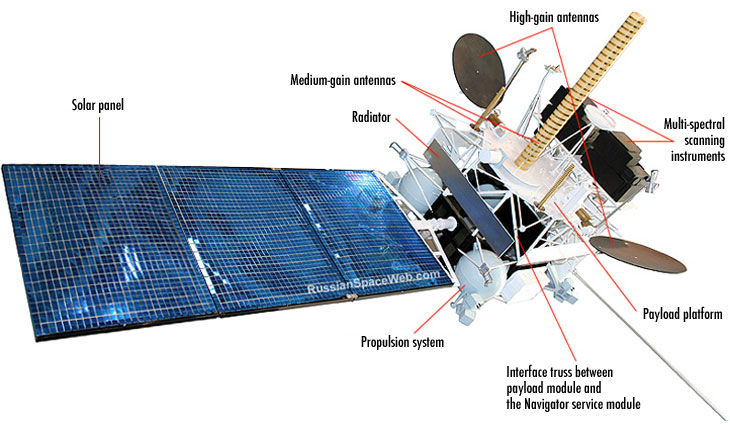

Key components of the Elektro-L satellite. Copyright © 2009 Anatoly Zak
