Soyuz MS-26 lifts off

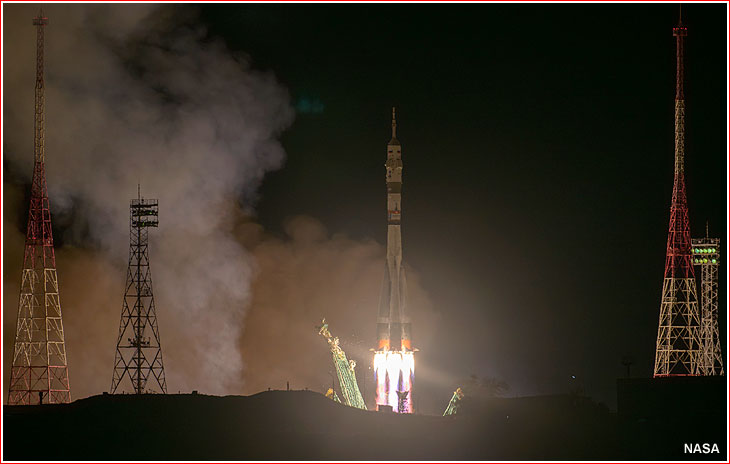

A Soyuz-2-1a rocket lifted off from Baikonur Cosmodrome, Kazakhstan, on Sept. 11, 2024, sending the Soyuz MS-26 spacecraft with a crew of three on its way to the International Space Station, ISS, for a nearly six-month stay.


launch

Soyuz MS-26 mission at a glance:

Spacecraft designation Soyuz MS-26 (11F732 No. 757), ISS mission 72S
Launch vehicle Soyuz-2-1a 14S53 No. M15000-070
Payload fairing (SZB) 11S517A3.1000A1-0
Spacecraft mass ~7,152 kilograms
Launch Site Baikonur, Site 31, Pad No. 6
Launch date and time 2024 Sept. 11, 19:23:12.436 Moscow Time (actual)
Docking date and time 2024 Sept. 11, 22:32:09 Moscow Time (actual); 22:33:03 (planned)
Docking destination ISS, Russia Segment, Prichal Node Module, UM
Flight duration (planned) 202 days (planned)
Landing date 2025 Spring (planned)
Primary crew Aleksei Ovchinin, Ivan Vagner, Don Pettit
Backup crew Sergei Kud'-Sverchkov, Aleksei Zubritsky, Jonathan Kim
SUPPORT THIS PROJECT!
Donate

Soyuz MS-26 mission

The Soyuz MS-26 spacecraft (Production Vehicle No. 757), intended to deliver three members of Expedition 71 and 72 to the ISS, originally included veteran Roskosmos cosmonauts Aleksei Ovchinin and Ivan Vagner. On March 27, 2024, NASA publicly confirmed that its veteran astronaut Don Pettit would launch aboard Soyuz MS-26, as a member of ISS Expeditions 71 and 72.

In March 2023, Roskosmos also reported that Sergei Kud'-Sverchkov, Aleksei Zubritsky and Aleksandr Gorbunov had been assigned as a backup crew for Expedition 72. Kud-Sverchkov's crew was also expected to serve as the primary crew on the first Russian launch to the ISS in 2025.

Soyuz MS-26 launch campaign

pad

After post-production tests in Korolev in the Fall of 2023, Soyuz MS-26 was shipped to Baikonur Cosmodrome on Dec. 18, 2023. It was unloaded at the processing site at Site 254 in Baikonur on Dec. 25, 2023. Within next 24 hours, RKK Energia team at Site 254 removed Soyuz MS-26 from storage and began its processing for launch.

In turn, the Soyuz 2-1a launch vehicle for the mission was reported arriving at the Tyuratam train station serving the space center aboard a 28-car train on June 25, 2024. (The same transport also delivered components of the rocket for the Progress MS-29 cargo mission).

On Aug. 26, 2024, the primary and backup crews arrived at Baikonur for familiarization training inside the flight-worthy Soyuz MS-26, which took place on August 28 inside the Spacecraft Processing Building, MIK KA, at Site 254. Part of the exercise was performed with cosmonauts donning Sokol-KV2 pressure safety suits.

On Sept. 1, 2024, Soyuz MS-26 was connected to its launch vehicle adapter after being weighted and being prepared for loading of the final cargo. The spacecraft was then rolled inside its payload fairing assembly and rotated back into vertical position for final tests.

On September 5, the primary and backup crews again took turns taking seats inside Soyuz MS-26 in its launch configuration, checking the composition and placement of deliverable items inside the Reentry and Habitation modules. They also tested the operation of key systems in simulation mode. On the same day, specialists from RKK Energia unplugged the vehicle from the diagnostics equipment in preparation for its transfer to the launch vehicle assembly building at Site 31 for integration with its Soyuz-2-1a launch vehicle which was completed on September 6. On the same day, the State Commission overseeing the campaign authorized the rollout of the vehicle to the launch pad at Site 31 on Sept. 8, 2024, which took place in the morning hours of the day.

Soyuz MS-26 launch scenario

A Soyuz-2-1a rocket with the Soyuz MS-26 spacecraft lifted off as scheduled on Sept. 11, 2024, at 19:23:12.436 Moscow Time (12:23 p.m. EDT).

Propelled by the simultaneous thrust of the four engines of the first stage and the single engine of the second stage, the vehicle headed almost exactly east to align its ascent trajectory with an orbital plane inclined 51.6 degrees toward the Equator. Slightly less than two minutes into the flight (L+113.70 seconds), at an altitude of around 45 kilometers and a velocity of 1.75 kilometers per second, the ship's main emergency escape rocket was jettisoned, immediately followed by the separation of the first stage. The emergency escape rocket and the four boosters of the first stage were expected to impact the ground 330 and 350 kilometers downrange from the launch site respectively.

Around 35 seconds after the first stage separation (L+153.90 seconds), as the vehicle exited the dense atmosphere at an altitude of 79 kilometers and a velocity of 2.2 kilometers per second, the payload fairing protecting the spacecraft split into two halves and fell away. They were projected to fall 500 kilometers downrange from the launch site.

In the meantime, the second (core) stage of the rocket continued firing until 4.8 minutes into the flight (L+287.70 seconds). Moments before the second stage completed its work, the four-chamber engine of the third stage ignited, firing through the lattice structure connecting the two stages. Moments after the separation of the core booster at an altitude of 157 kilometers and a velocity of 3.8 kilometers per second, the aft skirt of the third stage split into three segments and separated as well. The second-stage booster and the sections of the aft skirt were to impact the ground 1,550 and 1,570 kilometers downrange from the launch site respectively.

Following the 8-minute 49-second climb to orbit, the propulsion system of the third stage was cut off at L+525.93 seconds into the flight, releasing Soyuz MS-26 into an initial orbit at 19:32:01 Moscow Time (12:32 p.m. EDT).

Rendezvous and docking operations

Soyuz MS-26 was scheduled to dock at the nadir (Earth-facing) docking port of the Rassvet module, MIM1, a part of the Russian ISS Segment, on Sept. 11, 2024, at 22:33 p.m. Moscow Time (3:33 p.m. EDT), after a more than three-hour, two-orbit autonomous flight.

The ISS passed over the Baikonur launch site 20 seconds after the liftoff of Soyuz MS-26 and by the time the crew vehicle reached orbit, the station was more than 1,000 miles ahead in a 415.278 by 436.322-kilometer orbit. During the second orbit of its mission, Soyuz MS-26 was projected to be in a 389.816 by 426.712-kilometer intercept orbit. As usual, the final autonomous rendezvous process included six engine burns aboard the transport vehicle, which had the following timeline during the Soyuz MS-26 mission:

No. Moscow Time Distance from ISS Delta V Burn duration Engines used
SB1 20:31:06 634.12 kilometers 54.50 meters per second 135.4 seconds SKD
bok 20:57:35 182.54 kilometers 0.70 meters per second 17.8 seconds DPO
SB2 21:18:05 58.68 kilometers 55.58 meters per second 136.0 seconds SKD
SB3-1 22:05:25 2.04 kilometers 5.31 meters per second 15.4 seconds SKD
SB3-2 22:09:36 1.01 kilometer 5.92 meters per second 74.8 seconds DPO
SB3-3 22:12:27 0.61 kilometers 1.46 meters per second 12.6 seconds DPO

According to the Russian mission control in Korolev, the autonomous rendezvous of Soyuz MS-26 on Sept. 11, 2024, had the following timeline:

  • 20:12:28 Moscow Time: Beginning of autonomous rendezvous with the ISS;
  • 21:01:42 Moscow Time: Activation of the Kurs rendezvous system aboard the Zvezda Service Module, SM;
  • 21:02:42 Moscow Time: Activation of the Kurs rendezvous system aboard Soyuz MS-26;
  • 22:15 — 22:20 Moscow Time: Fly-around of the station;
  • 22:20 — 22:21 Moscow Time: Station-keeping of the spacecraft near ISS before final approach;
  • 22:21 — 22:33 Moscow Time: Final approach to the Rassvet module, MIM1;
  • 22:33:03 Moscow Time: Contact.

The 54-degree, three-minute flyaround of the station began from a distance of around 400 meters to align the spacecraft with the nadir-facing docking port of the Rassvet module. The spacecraft then started the final approach from a distance of around 200 meters.

The actual contact and capture between the transport ship and the station was reported to take place at 22:32:09 Moscow Time on Sept. 11, 2024.

The hatches between the crew vehicle and the station were opened at 00:58 Moscow Time on Sept. 12, 2024, (5:58 p.m. EDT on September 11).

The arrival of the Soyuz MS-26 spacecraft temporarily increased the ISS population from nine to 12 people. Counting three astronauts aboard the Chinese space station and four people conducting the autonomous Polaris Dawn flight aboard the Crew Dragon spacecraft, a record-breaking number of 19 people was in the Earth's orbit at the same time.



Soyuz MS-26 crew members:

Assignment
Primary crew at launch
Backup crew
Soyuz commander
Aleksei Ovchinin
Sergei Kud'-Sverchkov
Flight engineer 1
Ivan Vagner
Aleksei Zubritsky
Flight engineer 2
Don Pettit
Jonathan Kim
