Gagarin Cosmonaut Training Center
in Star City

Originated as a secret Air Force facility, Gagarin Cosmonaut Training Center has become Russia's only "school of cosmonauts" and one of the most enduring symbols of the nation's quest beyond Earth. Cleverly hidden in the evergreen woods northeast of Moscow, just meters away from a quiet Tsiolkovskaya railroad station on the Yaroslavl Railroad, the center was identified in the Soviet press as Zvezdny Gorodok, translated as Star City or Starry Town. Of course, it would be foolish to try to find "Star City" on Soviet maps...


Mir

Origin of Star City

A birth of the manned space flight program in the USSR at the end of the 1950s required the creation of a specialized cosmonaut training facility.

At the time, a special Air Force commission led by military physician Evgeny Karpov selected more than 200 fighter pilots suitable for further examination. In 1959, this group went through rigorous medical checkups at Central Research Military Aviation Hospital, TsVNIAG, in Moscow. Selected 20 people made up the first group of Soviet cosmonauts. Initially, the group was housed at Frunze Central Airfield in Moscow, conveniently located near Zhukovskiy Air Force Engineering Academy and Central Sports Club of the Soviet Army. Nikolai Kamanin, a legendary Soviet Pilot and Polar Explorer was appointed a head of training for future cosmonauts.

In the meantime, a special commission, chaired by Kamanin, was searching for a site for the permanent Cosmonaut Training Center, or TsPK. The goal was to find a site close enough to key centers of the Soviet space industry around Moscow, but, at the same time isolated from the urban life. The chosen location lay 40 kilometers from Moscow, near Chkalovskaya train station on the Yaroslav Railroad. (71) A nearby airfield served as a major hub for some key government aircraft units.

The official decision creating Cosmonaut Training Center, TsPK, was signed on January 11, 1960. (203) Future cosmonauts and their family members moved in the new facility at the beginning of June 1960. (71)

The site consisted of two parts, the training facility itself, which was known as TsPK and a small residential area for the military and civilian personnel serving the facility, as well as cosmonauts and their families. In the early years of the center most of the cosmonaut training would take place at the industrial sites developing hardware for the manned space program. (The OKB-1, the main system integrator of the Vostok spacecraft, was located only dozen of kilometers west along the Yaroslavl Railroad.) Eventually, the new training center acquired hardware developed specifically for training purposes.

Oasis of Socialism

At the height of the Cold War, the Star City was the favorite showcase of the Soviet propaganda -- an advanced and optimistic facade of the Soviet state. However, most ordinary Russians had vague idea about its location and even those who did would be met by a well guarded gates and a fence. Those who managed to get through on jobs or a rare state-organized "excursion" told stories about cosmonauts living in luxury apartment buildings and their wives shopping in stores, which looked like a dream to an ordinary Soviet housewife, exhausted by fruitless search for a decent piece of sausage or children' socks. Some cynical Russians joked that a happy Socialist society, which the Communist Party promised the Soviet people, was finally built ... in one single town.

With the disintegration of the USSR, the Star City had faced many of the problems that the rest of Russia struggled with for decades -- lack of government funds for infrastructure development and repair, as well as new challenges of transition to a free-market economy.

Local stores lost their exclusive government suppliers and switched to market prices. Even cosmonauts seemed to look for new ways to complement their government pensions -- some asking $250 per interview from visiting foreign journalists. In the meantime, a row of brand-new cottages, which looked like they were transplanted from New Jersey, sprung up in the cozy corner of the town to house NASA astronauts and officials deployed in Star City to support Shuttle-Mir and ISS programs.

End of military control

pool

In the 1990s, the neutral byouancy pool used for practicing spacewalk operations at Star City was equipped with custom-built full-scale mockups of key components of the Russian ISS Segment.


By the turn of the 21st century, Russian Air Force apparently long lost interest in human space flight and finally managed to dump responsibility for the management and funding of Star City onto the Russian space agency, Roskosmos. All formal transfer procedures were to be completed by July 1, 2009. Out of 1,100 military training personnel, who were employed at the center, only 320 were expected to remain, as a result of a compromise reached between the Air Force and Roskosmos. The town would still remain a closed territory to outsiders. (325) On March 30, 2009, a former cosmonaut from RKK Energia design bureau, Sergei Krikalev became the new head of the Gagarin training center.

The transfer of the center from military to civilian control was accompanied by thinly veiled bickering between Roskosmos and the Ministry of Defense. There was apparently so much bad blood between these two federal organizations, that military officials reportedly refused to approve routine post-flight honors to the Roskosmos' cosmonaut Maksim Suraev, who returned from orbit in March 2010.

After a protracted battle, on Dec. 7, 2010, the head of Roskosmos Anatoly Perminov signed an order No. 197, officially merging military and two civilian groups of cosmonauts from RKK Energia design bureau and IMBP space medicine institute and into a single unit. The unified group of cosmonauts had to be officially formed before Jan. 1, 2011.

By 2012, Russian media reported 2,000 people working for the Cosmonaut Training Center with 600 people at positions qualified as "critical" for the readiness of the facility. In the effort to retain those specialists, leadership at Roskosmos requested 300 million rubles of extra funds to cover increased wages. However the issue remained open as of March 2012.

Non-cosmonaut appointed to lead Star City

In April 2014, a former cosmonaut Yuri Lonchakov was appointed the head of the Gagarin training center, however, very soon, his personality apparently became a cause of discontent and even resignations among active Russian cosmonauts. After personal conflicts between Lonchakov and his subordinates had spilled into the Russian press, Roskosmos had to act. On Nov. 24, 2017, Director General of Roskosmos Igor Komarov presented a new head of the center Pavel Vlasov. Although for the first time since 1972, a non-cosmonaut had taken the lead at the facility, Vlasov brought tremendous experience as an aviation specialist, including five years as the Director General at Gromov Flight Research Institute, LII, an organization with a long history of contributions into aviation and space technology.

Simulation facilities of the Gagarin Cosmonaut Training Center

star city

  • Full-size mockups of all major spacecraft developed in the former USSR, from Soyuz to Buran from TKS to Mir and ISS, were coexisting or replacing each other inside the main hall of the center.
  • A water pool used imitating weightlessness was used for EVA (spacewalk) training. In 1980, it was replaced with a larger hydro-laboratory capable of accommodating a 20-ton space station module. The pool has a depth of 12 meters, diameter 23 meters and volume of 5,000 cubic meters.
  • Aircraft for imitating weightlessness, including MIG-15 UTI, Tu-104 and later IL-76 MDK, with internal volume of 400 cubical meters.
  • Two centrifuges, large TsF-18 and smaller TsF-7, designed to imitate G-forces during the rocket liftoff. TsF-18
  • A planetarium developed in East Germany, capable of projecting as many as 9,000 stars.

PTK Orel simulator (INSIDER CONTENT)

sim

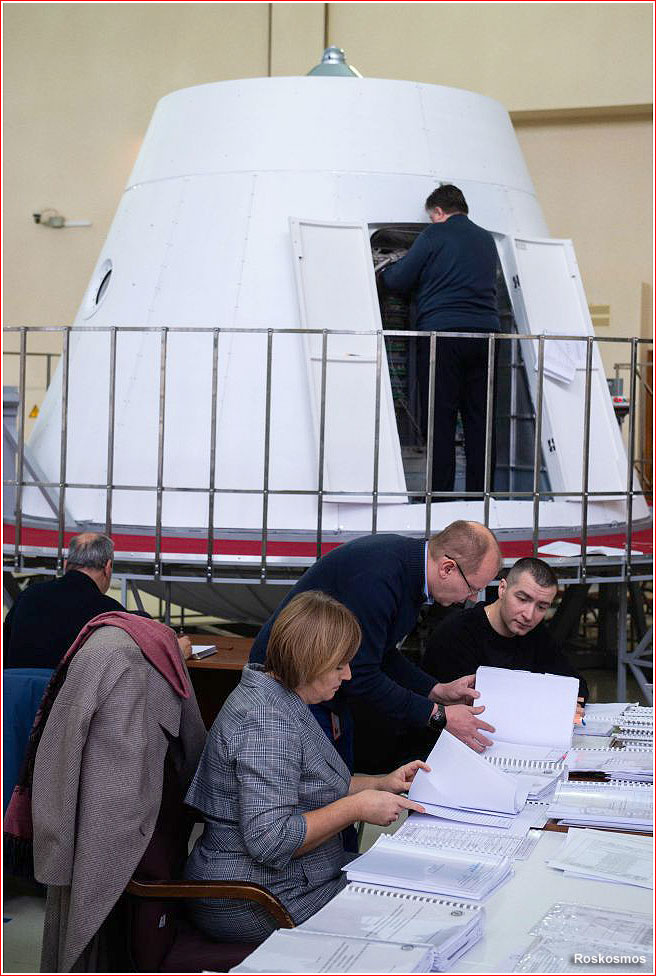

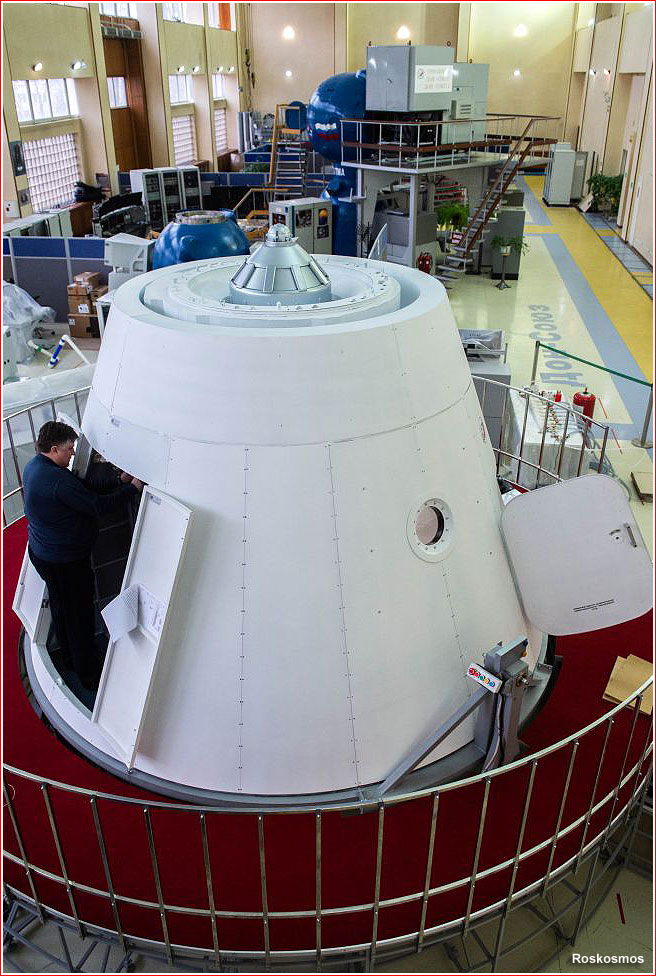

At the end of 2024, Roskosmos released first images of the of the integrated pilot simulator, KT PTK, for the PTK Orel spacecraft undergoing acceptance tests (INSIDER CONTENT) at the Gagarin Cosmonaut Training Center, TsPK, in Star City. The facility, known as RMO (from the Russian Rabochee Mesto Operatora), was designed to train cosmonauts to perform critical operations in orbit, such as attitude control, orbit corrections and rendezvous with other vehicles using equivalents of the ship's controls.

sim



Heads of the cosmonaut training center in Star City:

1
Evgeny Karpov
1960-1963
2
Mikhail Odintsov
1963
3
Nikolai Kuznetsov
1963-1972
4
Georgy Beregovoi
1972-1987
5
Vladimir Shatalov
1987-1991
6
Peotr Klimuk
1991-2001
7
Vasily Tsibliev
2001-2009
8
Sergei Krikalev
2009-2014
9
Yuri Lonchakov
2014-2017
10
Pavel Vlasov
2017-2021
11
Maksim Kharlamov
2021-



insider content





Page author: Anatoly Zak

Last update: December 11, 2024

All rights reserved









insider content

The Soyuz TM trainer TDK-7ST2 and its interior in Star City. Copyright © 2000 Anatoly Zak


Crew practicing inside Soyuz TMA trainer. Copyright © 2004 David Scanlin


As crews practice inside the Soyuz trainer, instructors monitor their activities from one of the "back rooms" in Star City using the TDK-7ST console. Copyright © 2000 Anatoly Zak


Cosmonauts use a specialized work station to practice docking maneuvers. Copyright © 2000 Anatoly Zak

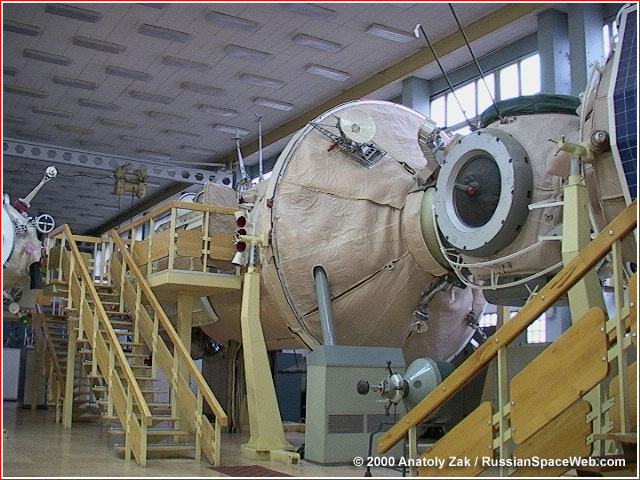

A full-scale mockup of the Mir space station used for cosmonaut training in Star City. Module Kvant-1 is on the foreground, the core module is immediately behind. Kvant-2 is on the background. Copyright © 2000 Anatoly Zak

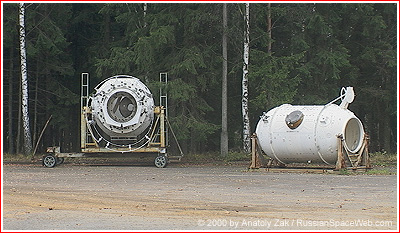

Mir mockups used for the underwater training await its fate at the edge of the woods in Star City, after the Mir was abandoned in 2000. In the meantime, components of the International Space Station replaced Mir hardware inside Star City's main water lab (below). Click to enlarge. Copyright © 2000 Anatoly Zak

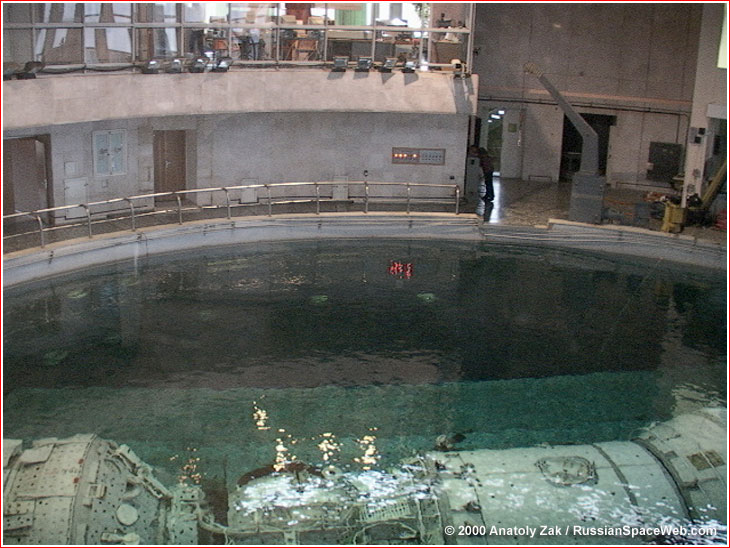

Star City's pool used for practicing EVA (spacewalks). The facility was introduced in Star City at the beginning of the 1980s. It was declared back in business on April 14, 2020, after a six-year renovation. At the time, first training for the MLM mission was slated to begin on April 24. Copyright © 2004 David Scanlin


Mockups of the service and docking module along with the front section of the control module of the ISS is lowered into the pool. Copyright © 2000 Anatoly Zak


One of the main training halls of the Star City. Mockups of the Mir modules are on the left, the ISS is on the right. Copyright © 2000 Anatoly Zak


During the ISS project, Russian and American space officials worked side by side in Star City. Copyright © 2000 Anatoly Zak


Training mockup of the service module of the International Space Station in Star City. Still classified hardware from the Soviet period is housed behind the curtain, which is visible on the background. Copyright © 2000 Anatoly Zak


A training mockup of the Priroda module. Copyright © 2000 Anatoly Zak


A training version of the Spektr module minus its thermal protective cover and the military payload, which was attached to the spacecraft from the left. Copyright © 2000 Anatoly Zak


Main centrifuge TsF-18 designed to imitate G-forces during rocket liftoff. Copyright © 2004 David Scanlin


So-called GN (hydraulic weightlessness) version of the Orlan spacesuit was used in the underwater training of cosmonauts during Mir and ISS programs. Copyright © 2001 Anatoly Zak


NASA astronaut Frank Culbertson samples a menu prepared by Russian dietitians for his upcoming trip to the International Space Station. Click to enlarge: 400 by 300 pixels / 72K Copyright © 2001 Anatoly Zak


A Russian dietitian works in her lab/kitchen in Star City. Click to enlarge: 400 by 310 pixels / 72K Copyright © 2000 Anatoly Zak


The veteran Shuttle pilot Scott Kelly in his office in Star City in October 2000, where he served as NASA Director of Operations. Click to enlarge: 400 by 300 pixels / 72K Copyright © 2000 Anatoly Zak

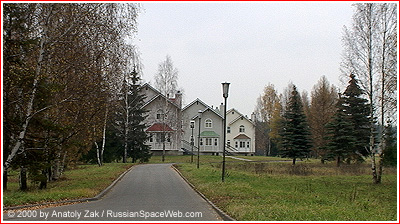

American-style housing for NASA personnel built in Star City in the second half of 1990s. Click to enlarge: 400 by 224 / 60K Copyright © 2000 Anatoly Zak
