The longest
serving manned spacecraft in the world, the Soyuz was originally conceived
in Sergei Korolev's OKB-1 design bureau for the Soviet effort
to explore the Moon at the beginning of the 1960s. However, long after
the Moon race was over, the Soyuz continued ferrying Russian crews to
the Salyut and Almaz orbital stations,
as well as it performed several solo flights and the historic docking
with the US Apollo spacecraft in 1975.
The origin of
the Soyuz spacecraft
Unlike one-man
Vostok spacecraft, the three-seat Soyuz would be able to conduct active
maneuvering, orbital rendezvous and docking. These features were all necessary
for a flight around the Moon and for lunar expedition itself. In the early
scenario of "circumlunar" flight, the Soyuz would be actually
a three-part spacecraft assembled in the low-Earth orbit from components delivered by separate launch vehicles. The 7K spacecraft would carry the crew, while the 9K propulsion stage would be fueled by 11K tankers. The 7K crew vehicle was to be equipped with the S5.35 propulsion system, while S5.36 and S3.37 engines would propel the 9K and 11K vehicles.
This plan was later abandoned
in favor of a two-launch and, later, one-launch scenario of the circumlunar mission.
For the expedition
to the lunar surface, Korolev's bureau adopted the plan similar to one
used in the Apollo program: a mother spacecraft and a lander would separate
in the lunar orbit and the lander would deliver an "expedition"
to the surface. The lander would then blast off from the Moon, enter lunar
orbit, where it would meet and dock with the mother spacecraft. In this
plan, a two-seat Soyuz would play a role of the "mother ship."
An "abbreviated"
version of the Soyuz spacecraft, designated L1, was developed for the
circumlunar flight onboard the Proton rocket. Commonly known as Zond,
the L1 spacecraft was essentially Soyuz, where its habitation module was
replaced with a smaller instrumentation package.
One more
variation of Soyuz was also under development in the mid-1960 specifically
for the missions in Earth orbit. Designated 7K-OK, it would be used for
"rehearsals" of rendezvous operations necessary
for the lunar expedition.
The early
flights
In the competitive
atmosphere of the Moon Race, the first test flights of the Soyuz were hastily
conducted in 1966 with mixed results. Despite earlier problems, Vladimir
Komarov blasted off onboard Soyuz-1 on April 23, 1967, for an ambitious
mission, calling for orbital rendezvous and docking with the second Soyuz
scheduled to follow Soyuz-1. The problems onboard Soyuz-1 forced to cancel
the second mission, while Soyuz-1 flight itself ended in a disaster during
landing. The problems with the parachute deployment caused the Soyuz-1
reentry capsule hit the ground with a crashing speed, killing Komarov.
In the wake
of the catastrophe, a series of unmanned missions followed, during which
two pairs of vehicles docked in orbit automatically. The manned missions
resumed in October 1968.
The Soyuz
for the station
As financial
and technical problems held the USSR behind the US in the Moon Race, the
leaders of the Soviet space industry had to look for a new direction in
the manned space program. Since the end of 1960, the new version of the
Soyuz spacecraft emerged, which would transport the crews to the Earth-orbiting
space laboratories. In 1971, a three-seat Soyuz delivered the first crew to
the original Salyut space station. But a new disaster
hit when the first Salyut crew returned from orbit. The sudden depressurization
of the reentry capsule killed three cosmonauts onboard. As a result of
the tragedy, the designers introduced a protective pressure suits at the
expense of one crew seat. Two-seat variants of Soyuz 7K-T spacecraft then continued ferrying
crews to Salyut and Almaz space stations.
At the TsKBEM design bureau in Podlipki (later Korolev), E.P. Vyatkin was appointed the lead engineer on the Soyuz spacecraft in 1974. He was replaced by V.P. Guzenko in 1976. In the same year, Design Department No. 174, led by L.I. Dulnev, took over all the work on Soyuz. (52)
The Soyuz
T and TM versions
The Soyuz
T version of the spacecraft flew its first piloted mission in 1980, and
since 1986 the Soyuz TM modification of the spacecraft has been delivering
crews to the Mir space station. The modifications
featured multiple improvements in the design, including the introduction
of the new weight-saving computerized flight-control system and improved
emergency escape system. These upgrades allowed to increase the crew to
three, while the crewmembers could be still protected with pressure suits.
RKK Energia
also developed another version of the spacecraft, known as Soyuz TMA,
or "anthropometric," to address the issues raised during US-Russian
cooperative program. "Anthropometric" upgrades would remove
the limitations for the height of the crewmembers onboard the Soyuz and
as a result, would allow using the TMA version as a "lifeboat"
for the International Space Station. The production of the TMA spacecraft,
however, was stalled by non-payments by the Russian government to the
RKK Energia at the end of the 1990s. Ironically, NASA, which originally
ordered the upgrades also refused to pay for the development of the TMA,
until Russia insured the production of the spacecraft.
The
overview of the Soyuz variants:
| Soyuz |
7K-9K-11K |
|
OKB-1 |

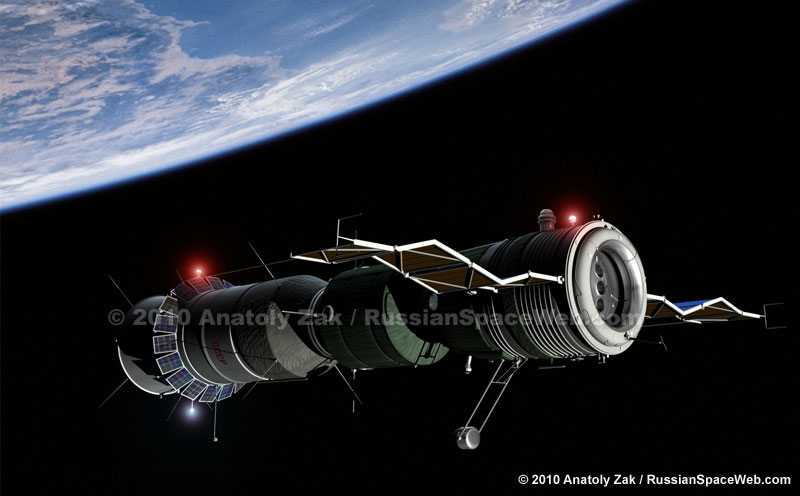

An original
version of the Soyuz spacecraft for circumlunar flight involving docking
of three elements in Earth orbit |
| Soyuz |
7K |
|
OKB-1 |
Concept
of a three-seat spacecraft |
| Soyuz 7K-OK |
|
1966 |
OKB-1 |
The
Soyuz for orbital flights in Earth's orbit |
| Soyuz 7K-T |
7K-T (11F615A8) |
|
OKB-1 |
Crew-delivery vehicle for Salyut space stations |
| Soyuz 7K-T |
7K-T (11F615A9) |
|
OKB-1 |
Crew-delivery vehicle for Almaz space stations |
| Soyuz-VI |
7K-VI |
|
OKB-1 |
Soyuz-based
complex for military purposes |
| Soyuz-M |
7K-TM (11F615A12) |
|
OKB-1 |
Soyuz for the joint mission with the Apollo spacecraft |
| |
OIS |
|
KF-OKB-1 |
Orbital
Research Station under development in 1967–1970 at Kuibushev (Samara)
Branch of OKB-1 |
| Soyuz |
|
|
OKB-1 |
Soyuz
version for docking with the OIS military space station |
| Zond |
|
1967 |
TsKBEM |
Spacecraft
for circumlunar missions |
| |
|
|
TsKBEM |
Complex
for trans-lunar flight and Moon landing |
| Soyuz-T |
7K-T |
|
TsKBEM |
Station transport (Salyut-6, Salyut-7, Mir) |
| Soyuz-TM |
7K-STM |
|
NPO Energia |
Station transport (Mir, ISS) |
| Soyuz-TMA |
7K-STMA |
|
RKK Energia |
Station transport (ISS) |
| Soyuz TMA-M |
|
|
RKK Energia |
Station transport (ISS) |
| Soyuz-MS |
|
2016 July 7 |
RKK Energia |
Station transport (ISS). Upgraded systems: Kurs-NA rendezvous system | Power supply system | EKTS satellite communications system | Propulsion system | SZI-M "Black box" |
